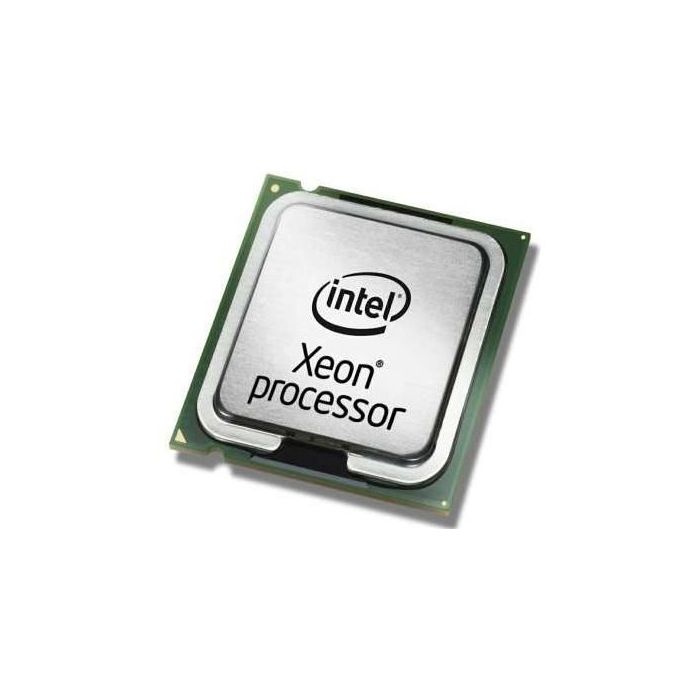

IBM Intel Xeon Processor E5506 (4M Cache, 2.13 GHz, 4.80 GT/s Intel QPI)
Leverbaar op bestelling
€ 132,95
Op voorraad
SKU
46D1270-RFB
**Intel VT-x with Extended Page Tables (EPT)**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**Intel VT-x with Extended Page Tables (EPT)**
Intel VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.
Specifications
| CPU configuration (max) | 2 |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| Physical Address Extension (PAE) | Yes |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 144 GB |
| Memory channels | Triple-channel |
| Memory clock speeds supported by processor | 800 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Tcase | 76 °C |
| Bus type | QPI |
| Compatible chipsets | Intel® 5500, Intel® 5520 |
| Component for | Server/workstation |
| Memory bandwidth supported by processor (max) | 19,2 GB/s |
| Number of QPI links | 2 |
| Processor base frequency | 2,13 GHz |
| Processor cache | 4 MB |
| Processor cache type | L3 |
| Processor lithography | 45 nm |
| Processor model | E5506 |
| Processor operating modes | 64-bit |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 4 |
| Stepping | D0 |
| System bus rate | 4,8 GT/s |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Smart Cache | Yes |
| Warranty | 1 year |
| Merk | IBM |
|---|---|
| Part number (MPN) | 46D1270-RFB |
