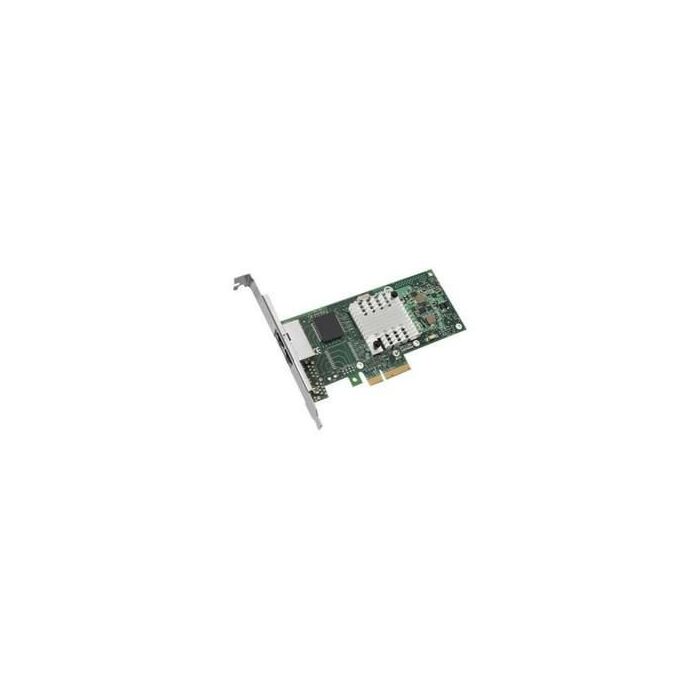

IBM Intel Ethernet Dual Port Server Adapter I340-T2 for IBM System x
Leverbaar op bestelling
Based on the new Intel® 82580 Gigabit Ethernet Controller, the Intel Ethernet Dual Port and Quad Port Server Adapters for IBM® System x® are Intel's fourth generation of PCI Express Gigabit Ethernet (PCIe GbE) adapters.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Based on the new Intel® 82580 Gigabit Ethernet Controller, the Intel Ethernet Dual Port and Quad Port Server Adapters for IBM® System x® are Intel's fourth generation of PCI Express Gigabit Ethernet (PCIe GbE) adapters. These adapters showcase the industry's first fully integrated, multi-port PCIe 2.0 GbE controllers, providing a smaller footprint and lower power dissipation.
In addition, these adapters offer advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI Express 2.0 interface. Intel's first eco-friendly, halogen-free design combines low power use and low cost for one of the best price to performance ratios in a multi-port solution that is available today. Figure 1 shows the Intel Ethernet Quad Port Server Adapter.
Specifications
| Internal | Yes |
|---|---|
| Product colour | Stainless steel |
| Ethernet LAN data rates | 10, 100, 1000 |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 1588, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad |
| Wake-on-LAN ready | Yes |
| Operating relative humidity (H-H) | 20 - 80 procent |
| Operating temperature (T-T) | 10 - 35 °C |
| Cable type | Cat 5e/6 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| Host interface | PCI Express |
| Interface | Ethernet |
| Warranty | 1 year |
| Merk | IBM |
|---|---|
| Part number (MPN) | 49Y4230-RFB |
| EAN | 5712505730768 |
