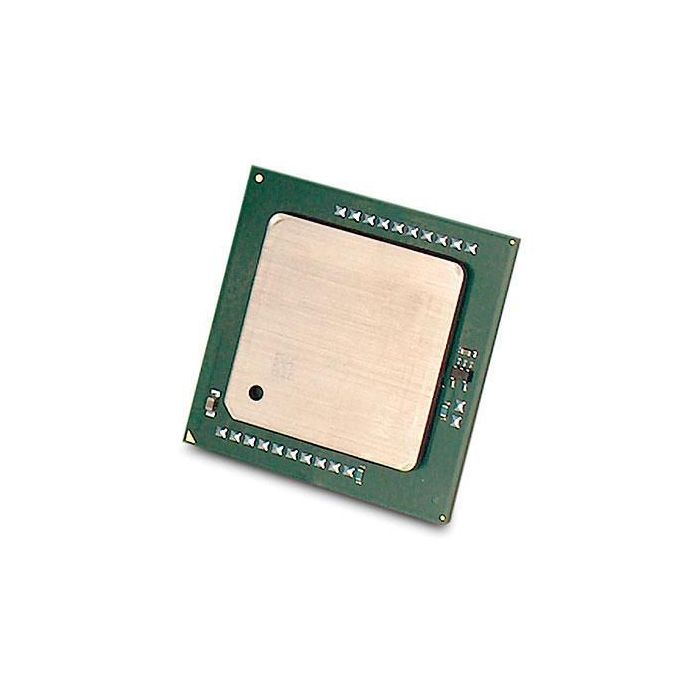

IBM Intel Xeon Processor L5630 (12M Cache, 2.13 GHz, 5.86 GT/s Intel QPI)
Leverbaar op bestelling
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.Intel® Turbo Boost Technology dynamically increases the processor's…
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.
Specifications
| CPU configuration (max) | 2 |
|---|---|
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Memory channels | Triple-channel |
| Memory clock speeds supported by processor | 1066, 800 |
| Memory types supported by processor | DDR3-SDRAM |
| Tcase | 63,1 °C |
| Bus type | QPI |
| Component for | Server/workstation |
| Memory bandwidth supported by processor (max) | 25,6 GB/s |
| Number of QPI links | 2 |
| Processor base frequency | 2,13 GHz |
| Processor boost frequency | 2,4 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor cores | 4 |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor frequency | 2,13 GHz |
| Processor lithography | 32 nm |
| Processor model | L5630 |
| Processor operating modes | 64-bit |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 8 |
| System bus rate | 5,86 GT/s |
| Thermal Design Power (TDP) | 40 W |
| VID Voltage Range | 0.750 - 1.350 V |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Warranty | 1 year |
| Merk | IBM |
|---|---|
| Part number (MPN) | 69Y1359-RFB |
