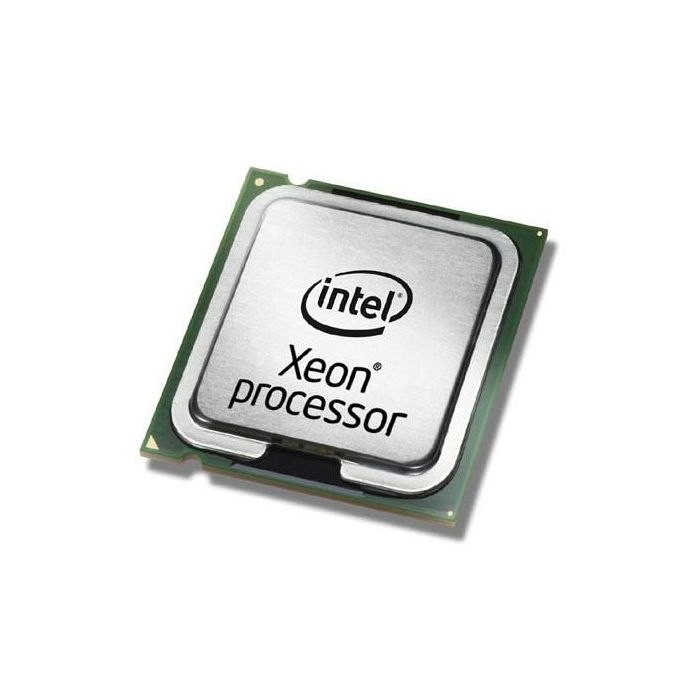

IBM Intel Xeon Processor E5645 (12M Cache, 2.40 GHz, 5.86 GT/s Intel QPI)
Leverbaar op bestelling
**Intel Turbo Boost Technology**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**Intel Turbo Boost Technology**
Intel Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
**Intel Hyper-Threading Technology**
Intel Hyper-Threading Technology (Intel HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
**Intel VT-x with Extended Page Tables (EPT)**
Intel VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.
Specifications
| CPU configuration (max) | 2 |
|---|---|
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| Physical Address Extension (PAE) | 40 Bit |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Memory channels | Triple-channel |
| Memory clock speeds supported by processor | 1066, 1333, 800 |
| Memory types supported by processor | DDR3-SDRAM |
| Tcase | 76,2 °C |
| Bus type | QPI |
| Component for | Server/workstation |
| CPU multiplier (bus/core ratio) | 18 |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| Number of QPI links | 2 |
| Package type | Tray |
| Processor ARK ID | 48768 |
| Processor base frequency | 2,4 GHz |
| Processor boost frequency | 2,67 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor codename | Westmere EP |
| Processor lithography | 32 nm |
| Processor model | E5645 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5600 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 12 |
| Stepping | B1 |
| System bus rate | 5,86 GT/s |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Conflict-Free processor | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | Yes |
| Product type | 4 |
| Processor package size | 42.5 cm |
| Warranty | 1 year |
| Merk | IBM |
|---|---|
| Part number (MPN) | 69Y4714-RFB |
| EAN | 5712505168424 |
