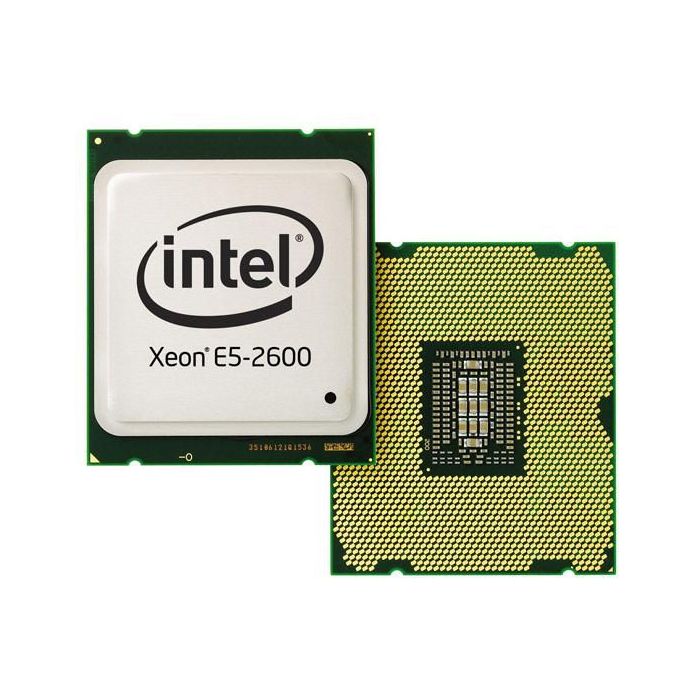

IBM Xeon Processor E5-2620, 2000MHz, FCLGA2011, 95W
Leverbaar op bestelling
€ 13,95
Op voorraad
SKU
81Y9295-RFB
As you know, the Xeon Foster is called "Willamette with SMP support", and the Xeon Prestonia is known as "Northwood with SMP support". These CPUs are based on the same core.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
As you know, the Xeon Foster is called "Willamette with SMP support", and the Xeon Prestonia is known as "Northwood with SMP support". These CPUs are based on the same core. Besides, the pairs of "Foster - Willamette" and "Prestonia - Northwood" are based on the same fabrication process and have the same L2 cache size. The processors have different sockets, but if you look at the signal assignment diagram the pins of the Socket 603 processor will show that most of them control either power supply or ground, i.e. they are not significant.
Specifications
| Execute Disable Bit | Yes |
|---|---|
| Idle States | Yes |
| Market segment | Server |
| Scalability | S2S |
| Thermal Monitoring Technologies | Yes |
| On-board graphics card | No |
| ECC | Yes |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1066, 1333, 800 |
| Memory types supported by processor | DDR3-SDRAM |
| Tcase | 77,4 °C |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Component for | Server/workstation |
| CPU multiplier (bus/core ratio) | 25 |
| Number of QPI links | 2 |
| Processor base frequency | 2 GHz |
| Processor boost frequency | 2,5 GHz |
| Processor cache | 15 MB |
| Processor cache type | L3 |
| Processor cores | 6 |
| Processor family | Intel® Xeon® E5 Family |
| Processor frequency | 2 GHz |
| Processor lithography | 32 nm |
| Processor model | E5-2620 |
| Processor operating modes | 64-bit |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 12 |
| System bus rate | 7,2 GT/s |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.60 - 1.35 V |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Demand Based Switching | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® vPro™ Technology | Yes |
| Warranty | 1 year |
| Merk | IBM |
|---|---|
| Part number (MPN) | 81Y9295-RFB |
