IBM QLogic 8200 Dual Port 10GbE SFP+ VFA for IBM System x
Leverbaar op bestelling

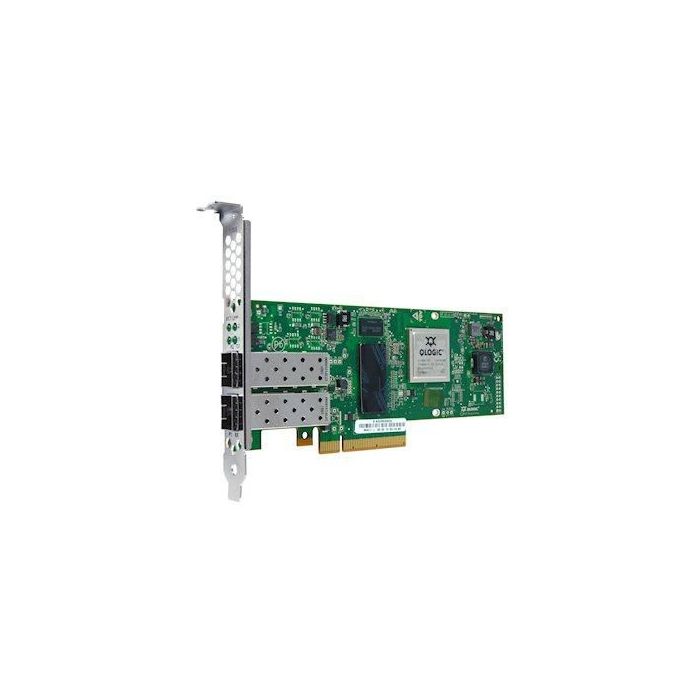

The QLogic 8200 Virtual Fabric Adapter Family for IBM System x consists of 10 Gigabit Ethernet adapters available in either a standard PCIe adapter form factor or a mezzanine form factor. Both adapters are high-performance Converged Network Adapters (CNAs) based on the new QLogic 8200 design.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The QLogic 8200 Virtual Fabric Adapter Family for IBM System x consists of 10 Gigabit Ethernet adapters available in either a standard PCIe adapter form factor or a mezzanine form factor. Both adapters are high-performance Converged Network Adapters (CNAs) based on the new QLogic 8200 design. The adapters offer upgrades to full hardware offload for Fibre Channel over Ethernet (FCoE) and iSCSI processing. The adapters connect to SFP+ Multimode Fiber SR optical modules and direct-attach copper (DAC) cables.
Specifications
| Chipset | QLogic 8200 ASIC |
|---|---|
| Internal | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -43 - 73 °C |
| Fiber Channel over Ethernet | Yes |
| Flow control support | Yes |
| Intelligent Offloads | Yes |
| Quantity | 1 |
| Quantity per pack | 1 stuk(s) |
| Connectivity technology | Wired |
| Fiber optic connector | SFP+ |
| Fiber ports quantity | 2 |
| Host interface | PCI Express |
| Interface | Fiber |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Warranty | 1 year |
| Merk | IBM |
|---|---|
| Part number (MPN) | 90Y4600-RFB |
| EAN | 5712505613672 |
