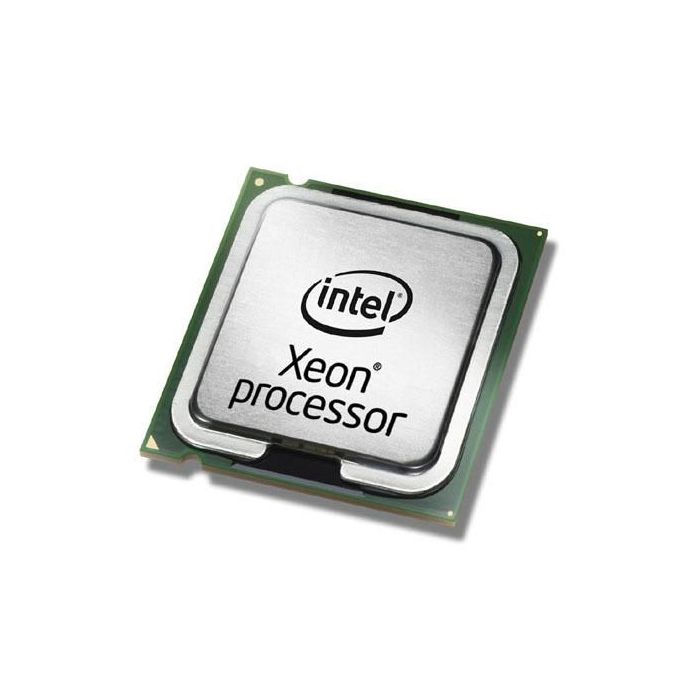

Intel Intel® Xeon® Processor E7540 (18M Cache, 2.00 GHz, 6.40 GT/s Intel® QPI)
Leverbaar op bestelling
Designed for maximum performance and reliability, these massively scalable 2-way to 256-way, 64-bit multi-core servers are designed to provide exceptional scalable performance and mission-critical class reliability for your most data-demanding applications and virtualization projects.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Designed for maximum performance and reliability, these massively scalable 2-way to 256-way, 64-bit multi-core servers are designed to provide exceptional scalable performance and mission-critical class reliability for your most data-demanding applications and virtualization projects.
**Intel® Turbo Boost Technology**
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
**Intel® Hyper-Threading Technology**
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
**Enhanced Intel SpeedStep® Technology**
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Specifications
| Commodity Classification Automated Tracking System (CCATS) | NA |
|---|---|
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 3A991.A.1 |
| Market segment | Server |
| Maximum operating temperature | 64 °C |
| Tcase | 64 °C |
| Cache memory | 18 MB |
| Box | No |
| Bus type | QPI |
| Cooler included | No |
| Package type | Tray |
| Processor ARK ID | 46492 |
| Processor base frequency | 2 GHz |
| Processor boost frequency | 2,27 GHz |
| Processor cache | 18 MB |
| Processor cache type | L3 |
| Processor codename | Nehalem EX |
| Processor cores | 6 |
| Processor family | Intel® Xeon® 7000 Sequence |
| Processor frequency | 2 GHz |
| Processor lithography | 45 nm |
| Processor manufacturer | Intel |
| Processor model | E7540 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 7500 Series |
| Processor socket | LGA 1567 (Socket LS) |
| Processor threads | 12 |
| System bus rate | 6,4 GT/s |
| Thermal Design Power (TDP) | 105 W |
| VID Voltage Range | 0.675 - 1.35 V |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Born on date | Q1'10 |
| Bus bandwidth | 6,4 |
| Bus speed | 6.4 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q1'10 |
| Processor brand name | Intel Xeon |
| Processor core voltage | 0.675-1.35 V |
| Product family | Intel Xeon Processor 7000 Sequence |
| Product name | Intel Xeon E7540 (18M Cache, 2.00 GHz, 6.40 GT/s Intel QPI) |
| Product type | Processor |
| Status | Discontinued |
| Warranty | 1 year |
| Merk | Intel |
|---|---|
| Part number (MPN) | AT80604004878AA-RFB |
