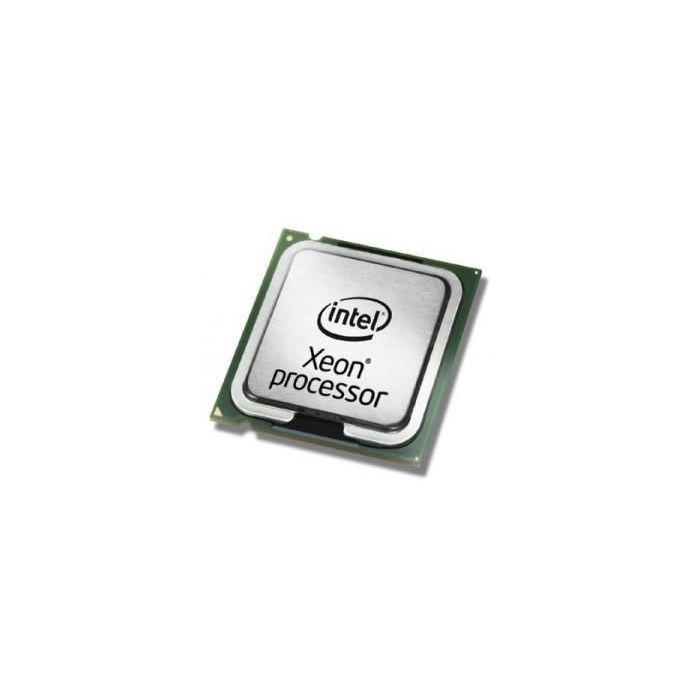

Intel Intel® Xeon® Processor E5620 (12M Cache, 2.40 GHz, 5.86 GT/s Intel® QPI)
Leverbaar op bestelling
€ 8,95
Op voorraad
SKU
AT80614005073AB-RFB
Designed for industry-leading performance and maximum energy efficiency, these versatile 1-way and 2-way 64-bit multi-core servers and workstations are ideally suited to a wide range of infrastructure, cloud, high-density, and high performance computing (HPC) applications.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Designed for industry-leading performance and maximum energy efficiency, these versatile 1-way and 2-way 64-bit multi-core servers and workstations are ideally suited to a wide range of infrastructure, cloud, high-density, and high performance computing (HPC) applications.
Specifications
| Bandwidth | 25600 MB/s |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| CPU configuration (max) | 2 |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Idle States | Yes |
| Images Type Map | <lt/>div<gt/><lt/>img src="https://ark.intel.com/inc/images/diagrams/diagram-19.gif" title="Block Diagram" /<gt/><lt/>/div<gt/> |
| Market segment | Server |
| Physical Address Extension (PAE) | 40 Bit |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Memory channels | Triple-channel |
| Memory types supported by processor | DDR3-SDRAM |
| Tcase | 77,6 °C |
| Cache memory | 12 MB |
| Maximum internal memory | 294912 MB |
| Box | No |
| Bus type | QPI |
| Component for | Server/workstation |
| Cooler included | No |
| CPU multiplier (bus/core ratio) | 18 |
| Memory bandwidth supported by processor (max) | 25,6 GB/s |
| Number of QPI links | 2 |
| Package type | Tray |
| Processor ARK ID | 47925 |
| Processor base frequency | 2,4 GHz |
| Processor boost frequency | 2,66 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor code | SLBV4 |
| Processor codename | Westmere EP |
| Processor cores | 4 |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor frequency | 2,4 GHz |
| Processor lithography | 32 nm |
| Processor manufacturer | Intel |
| Processor model | E5620 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5600 Series |
| Processor socket | LGA 1366 (Socket B) |
| Processor threads | 8 |
| Stepping | B1 |
| System bus rate | 5,86 GT/s |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Conflict-Free processor | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Born on date | Q1'10 |
| Bus bandwidth | 5,86 |
| Bus speed | 5.86 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q1'10 |
| Maximum memory | 288 GB |
| Processor brand name | Intel Xeon |
| Processor core voltage | 0.750-1.350 V |
| Product family | Intel Xeon Processor 5000 Sequence |
| Product name | Intel Xeon E5620 (12M Cache, 2.40 GHz, 5.86 GT/s Intel QPI) |
| Product type | Processor |
| Status | Discontinued |
| Supported memory types | DDR3-SDRAM |
| Processor package size | 42.5mm x 45mm mm |
| Warranty | 1 year |
| Merk | Intel |
|---|---|
| Part number (MPN) | AT80614005073AB-RFB |
| EAN | 5705965991718 |
