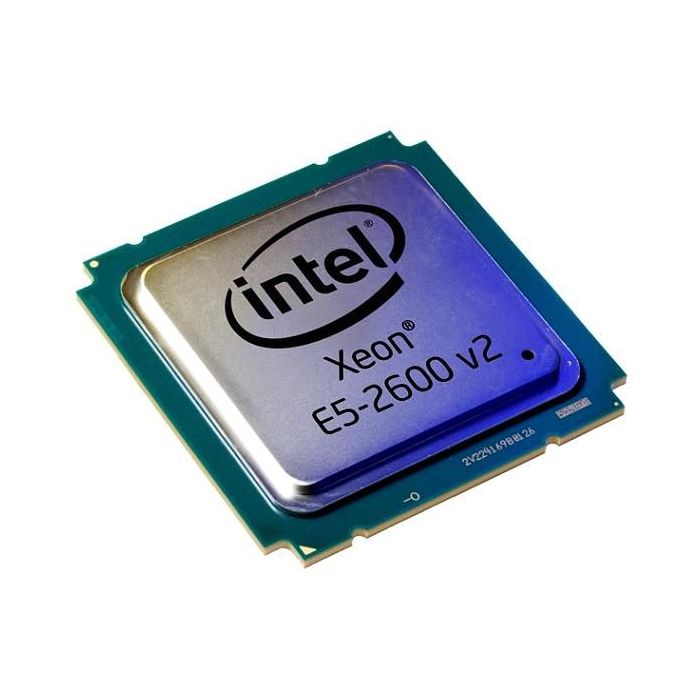

Intel Intel® Xeon® Processor E5-2690 v2 (25M Cache, 3.00 GHz)
Leverbaar op bestelling
**Now with greater performance, efficiency, and security to fortify your cloud solutions.**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**Now with greater performance, efficiency, and security to fortify your cloud solutions.**
The explosive growth of unstructured data puts new demands on network and storage infrastructure and challenges your ability to deliver services such as cloud computing. IT needs to respond rapidly to new and changing business demands, scale quickly and appropriately to fluctuating workloads, accommodate business expansions, and protect your data from cybercriminals—all while keeping costs down.
**Invest in an agile foundation.**
The new Intel® Xeon® processor E5-2600 and E5-1600 v2 product families are at the heart of an agile, efficient data center that meets your diverse needs. Now you can deploy a more secure private cloud, quickly crunch through big data, and get the most out of your data center with greater energy efficiency.
Specifications
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Idle States | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express CEM revision | 3.0 |
| PCI Express slots version | 3.0 |
| Physical Address Extension (PAE) | 46 Bit |
| Scalability | 2S |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1066, 1333, 1600, 1866, 800 |
| Memory types supported by processor | DDR3-SDRAM |
| Tcase | 88 °C |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Maximum internal memory | 786432 MB |
| Box | No |
| Bus type | QPI |
| Component for | Server/workstation |
| Cooler included | No |
| Memory bandwidth supported by processor (max) | 59,7 GB/s |
| Number of QPI links | 2 |
| Package type | Tray |
| Processor ARK ID | 75279 |
| Processor base frequency | 3 GHz |
| Processor boost frequency | 3,6 GHz |
| Processor cache | 25 MB |
| Processor cache type | Smart Cache |
| Processor codename | Ivy Bridge EP |
| Processor cores | 10 |
| Processor family | Intel® Xeon® E5 V2 Family |
| Processor frequency | 3 GHz |
| Processor lithography | 22 nm |
| Processor manufacturer | Intel |
| Processor model | E5-2690V2 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-2600 v2 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 20 |
| System bus rate | 8 GT/s |
| Thermal Design Power (TDP) | 130 W |
| VID Voltage Range | 0.65 - 1.3 V |
| Conflict-Free processor | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Technology 2.0 frequency | 3,6 GHz |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® vPro™ Technology | Yes |
| Bus bandwidth | 8 |
| Bus speed | 8 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q3'13 |
| Maximum memory | 768 GB |
| Processor brand name | Intel Xeon |
| Product family | Intel Xeon Processor E5 v2 Family |
| Product type | Processor |
| Status | Launched |
| Supported memory types | DDR3-SDRAM |
| Processor package size | 52.5mm x 45mm mm |
| Warranty | 1 year |
| Merk | Intel |
|---|---|
| Part number (MPN) | CM8063501374802-RFB |
