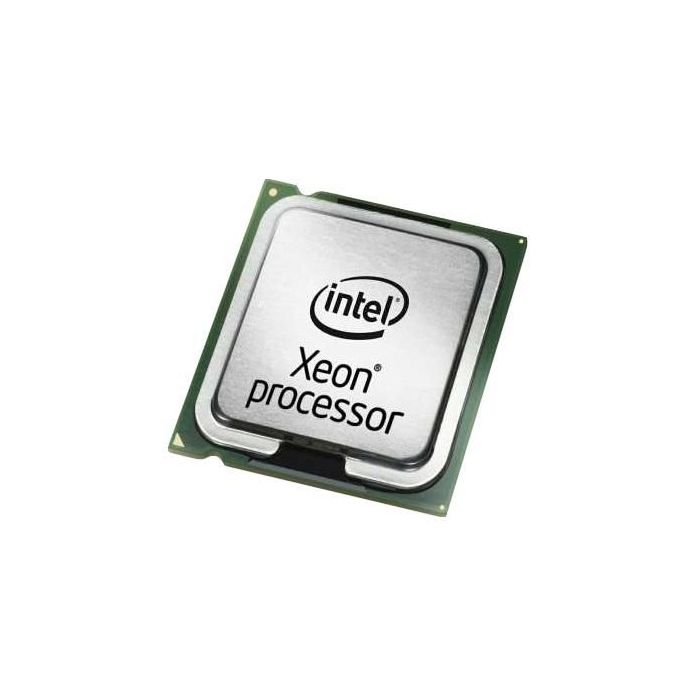

Intel Intel® Xeon® Processor E5-2630 v3 (20M Cache, 2.40 GHz)
Leverbaar op bestelling
**Intel® Turbo Boost Technology**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**Intel® Turbo Boost Technology**
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
**Intel® Hyper-Threading Technology**
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
**Enhanced Intel SpeedStep® Technology
** Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Specifications
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Idle States | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express CEM revision | 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| PCI Express slots version | 3.0 |
| Physical Address Extension (PAE) | 46 Bit |
| Scalability | 2S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| ECC | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1600, 1866 |
| Memory types supported by processor | DDR4-SDRAM |
| Tcase | 72,1 °C |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Maximum internal memory | 786432 MB |
| Box | No |
| Bus type | QPI |
| Component for | Server/workstation |
| Cooler included | No |
| Memory bandwidth supported by processor (max) | 59 GB/s |
| Number of QPI links | 2 |
| Package type | Tray |
| Processor ARK ID | 83356 |
| Processor base frequency | 2,4 GHz |
| Processor boost frequency | 3,2 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Processor codename | Haswell |
| Processor cores | 8 |
| Processor family | Intel Xeon E5 v3 |
| Processor frequency | 2,4 GHz |
| Processor lithography | 22 nm |
| Processor manufacturer | Intel |
| Processor model | E5-2630V3 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 16 |
| Stepping | R2 |
| System bus rate | 8 GT/s |
| Thermal Design Power (TDP) | 85 W |
| VID Voltage Range | 0.65 - 1.3 V |
| Conflict-Free processor | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Technology 2.0 frequency | 3,2 GHz |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® vPro™ Technology | Yes |
| Bus bandwidth | 8 |
| Bus speed | 8 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q3'14 |
| Maximum memory | 768 GB |
| Processor brand name | Intel Xeon v2 |
| Product family | Intel Xeon Processor E5 v3 Family |
| Product type | Processor |
| Status | Discontinued |
| Supported memory types | DDR4-SDRAM |
| Processor package size | 52.5mm x 45mm mm |
| Warranty | 1 year |
| Merk | Intel |
|---|---|
| Part number (MPN) | CM8064401831000-RFB |
| EAN | 5715328233119 |
