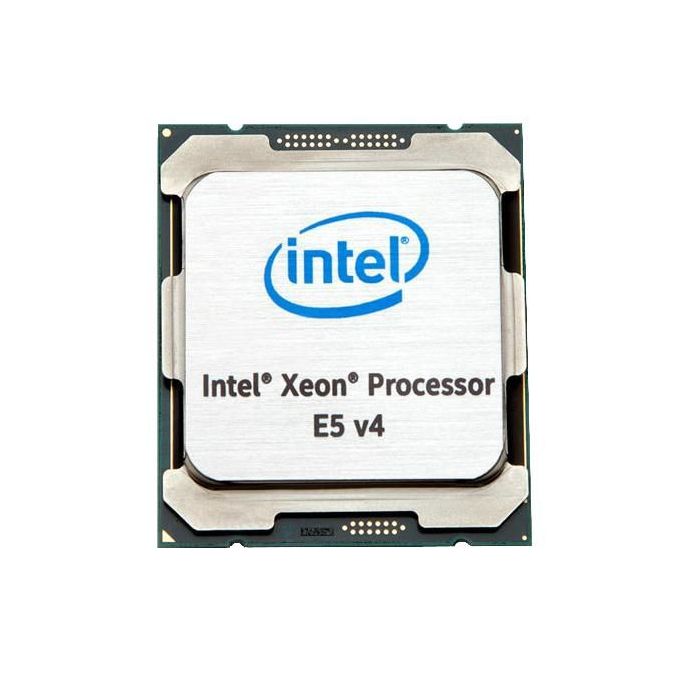

Intel Intel® Xeon® Processor E5-2699 v4 (55M Cache, 2.20 GHz)
Leverbaar op bestelling
The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.
**Performance
** Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
**Optimized for Orchestration
** Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
**Enhanced Security
** Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
leaflet ( Engels ) Product Brochure
Specifications
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Idle States | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express CEM revision | 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| PCI Express slots version | 3.0 |
| Physical Address Extension (PAE) | 46 Bit |
| Scalability | 2S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 1,5 TB |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1600, 1866, 2133, 2400 |
| Memory types supported by processor | DDR4-SDRAM |
| Tcase | 79 °C |
| Maximum internal memory | 1572864 MB |
| Box | No |
| Bus type | QPI |
| Component for | Server/workstation |
| Cooler included | No |
| Memory bandwidth supported by processor (max) | 76,8 GB/s |
| Number of QPI links | 2 |
| Package type | Tray |
| Processor ARK ID | 91317 |
| Processor base frequency | 2,2 GHz |
| Processor boost frequency | 3,6 GHz |
| Processor cache | 55 MB |
| Processor cache type | Smart Cache |
| Processor codename | Broadwell |
| Processor cores | 22 |
| Processor family | Intel® Xeon® E5 v4 |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | E5-2699V4 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 44 |
| Stepping | B0 |
| System bus rate | 9,6 GT/s |
| Thermal Design Power (TDP) | 145 W |
| Conflict-Free processor | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Technology 2.0 frequency | 3,6 GHz |
| Intel® vPro™ Platform Eligibility | Yes |
| Bus bandwidth | 9,6 |
| Bus speed | 9.6 GT/s |
| Bus type units | GT/s |
| End of servicing updates date | Thursday, June 30, 2022 |
| Last change | 63903513 |
| Launch date | Q1'16 |
| Processor brand name | Intel Xeon |
| Product family | Intel Xeon Processor E5 v4 Family |
| Product type | Processor |
| Servicing status | End of Servicing Updates |
| Status | Launched |
| Supported memory types | DDR4-SDRAM |
| Processor package size | 45mm x 52.5mm mm |
| Warranty | 1 year |
| Merk | Intel |
|---|---|
| Part number (MPN) | CM8066002022506-RFB |
| EAN | 5704174400509 |
