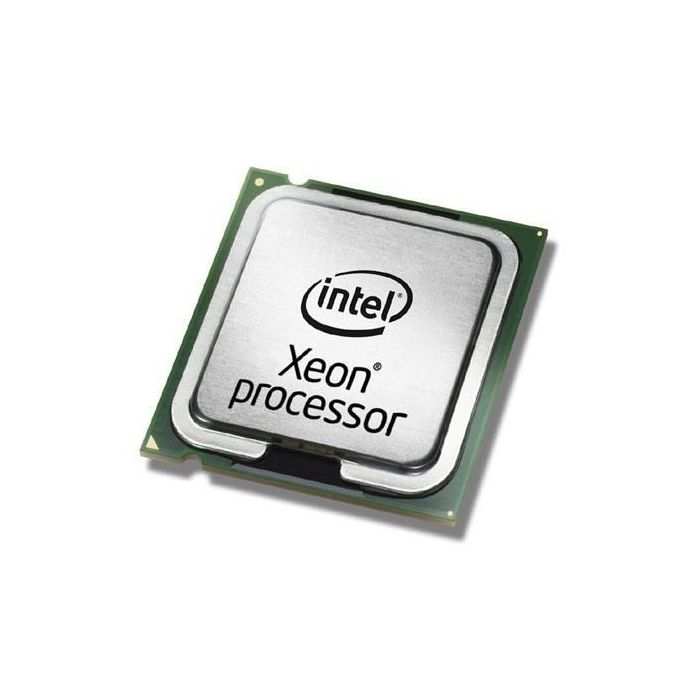

Intel Intel® Xeon® Processor E5420 (12M Cache, 2.50 GHz, 1333 MHz FSB)
Leverbaar op bestelling
**Enhanced Intel SpeedStep® Technology**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**Enhanced Intel SpeedStep® Technology**
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
**Thermal Monitoring Technologies**
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core's temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits
**Execute Disable Bit**
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.
Specifications
| Commodity Classification Automated Tracking System (CCATS) | NA |
|---|---|
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 3A991.A.1 |
| Idle States | Yes |
| Images Type Map | <lt/>div<gt/><lt/>img src="https://ark.intel.com/inc/images/diagrams/diagram-5.gif" title="Block Diagram" /<gt/><lt/>img src="https://ark.intel.com/inc/images/diagrams/diagram-6.gif" title="Block Diagram" /<gt/><lt/>/div<gt/> |
| Market segment | Server |
| Number of Processing Die Transistors | 820 M |
| Processing Die size | 214 mm² |
| Thermal Monitoring Technologies | Yes |
| Tcase | 67 °C |
| Box | No |
| Bus type | FSB |
| Component for | Server/workstation |
| Cooler included | No |
| CPU multiplier (bus/core ratio) | 7,5 |
| FSB Parity | Yes |
| Package type | Tray |
| Processor ARK ID | 33927 |
| Processor base frequency | 2,5 GHz |
| Processor cache | 12 MB |
| Processor cache type | L2 |
| Processor core voltage (AC) | 0.95 - 1.225 V |
| Processor cores | 4 |
| Processor family | Intel® Xeon® |
| Processor frequency | 2,5 GHz |
| Processor front side bus | 1333 MHz |
| Processor lithography | 45 nm |
| Processor manufacturer | Intel |
| Processor model | E5420 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5400 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor threads | 4 |
| Stepping | C0 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.85 - 1.35 V |
| Conflict-Free processor | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Bus bandwidth | 1333 |
| Bus speed | 1333 MHz |
| Bus type units | MHz |
| Last change | 63903513 |
| Launch date | Q4'07 |
| Processor brand name | Intel Xeon |
| Product family | Intel Xeon Processor 5000 Sequence |
| Product type | Processor |
| Status | Discontinued |
| Processor package size | 37.5 x 37.5 mm |
| Warranty | 1 year |
| Merk | Intel |
|---|---|
| Part number (MPN) | EU80574KJ060N-RFB |
| EAN | 5706998288998 |
