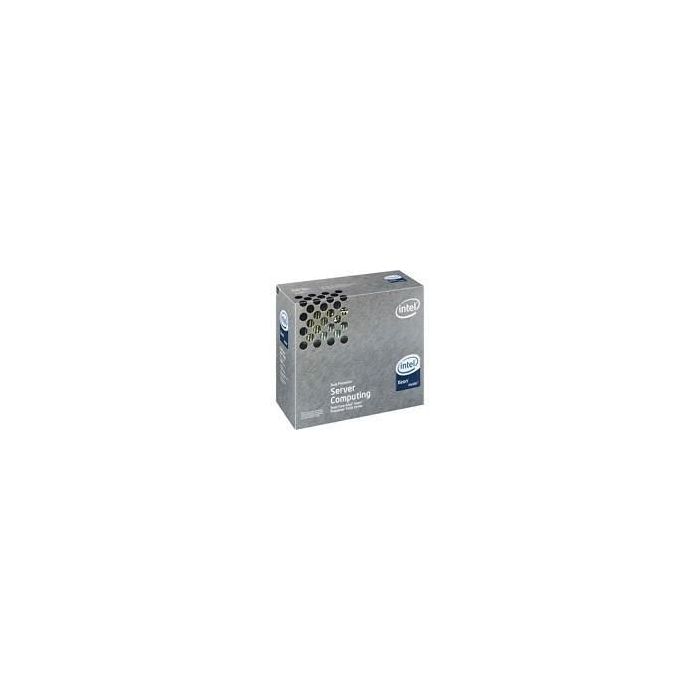

Intel Intel® Xeon® Processor E5440 <br />(12M Cache, 2.83 GHz, 1333 MHz FSB)
Leverbaar op bestelling
The Quad-Core Intel® Xeon® processor 7300 series, based on the Intel® Core™ microarchitecture, offers leading scalable performance and best-in-class virtualization for server consolidation.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Quad-Core Intel® Xeon® processor 7300 series, based on the Intel® Core™ microarchitecture, offers leading scalable performance and best-in-class virtualization for server consolidation.
Experience up to 2x greater scalable performance¹ 2.5x greater virtualization performance², and 3x performance per watt³ than the industry-leading Dual-Core Intel Xeon processor in the same power envelope. These quad-core-based servers enable you to be more productive and reduce data center space, power and administration/operation costs by consolidating your data center onto fewer servers.
80-watt Intel Xeon processors set new standards in energy efficiency. The E7340, E7330, E7320 processors provide 15 percent up to 47 percent decreases in power.◊ For ultradense deployments the 50-watt Intel Xeon processor L7345 provides 47 percent up to 67 percent decrease in power§ from Intel® dual-core 95- and 150-watt processors.
Specifications
| Commodity Classification Automated Tracking System (CCATS) | NA |
|---|---|
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 3A991.A.1 |
| Idle States | Yes |
| Market segment | Server |
| Number of Processing Die Transistors | 820 M |
| Processing Die size | 214 mm² |
| Thermal Monitoring Technologies | Yes |
| Maximum operating temperature | 67 °C |
| Tcase | 67 °C |
| Box | Yes |
| Bus type | FSB |
| Component for | Server/workstation |
| Cooler included | Yes |
| CPU multiplier (bus/core ratio) | 8,5 |
| FSB Parity | Yes |
| L2 cache speed | 2,83 GHz |
| Package type | Box |
| Processor ARK ID | 33082 |
| Processor base frequency | 2,83 GHz |
| Processor cache | 12 MB |
| Processor cache type | L2 |
| Processor core voltage (AC) | 0.95 - 1.225 V |
| Processor cores | 4 |
| Processor family | Intel® Xeon® |
| Processor front side bus | 1333 MHz |
| Processor lithography | 45 nm |
| Processor manufacturer | Intel |
| Processor model | E5440 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5400 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor threads | 4 |
| Stepping | C0 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.85 - 1.35 V |
| Conflict-Free processor | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Bus bandwidth | 1333 |
| Bus speed | 1333 MHz |
| Bus type units | MHz |
| Last change | 63903513 |
| Launch date | Q1'08 |
| Processor brand name | Intel Xeon |
| Product family | Intel Xeon Processor 5000 Sequence |
| Product type | Processor |
| Status | Discontinued |
| Processor package size | 37.5 x 37.5 mm |
| Warranty | 1 year |
| Merk | Intel |
|---|---|
| Part number (MPN) | SLBBJ-RFB |
