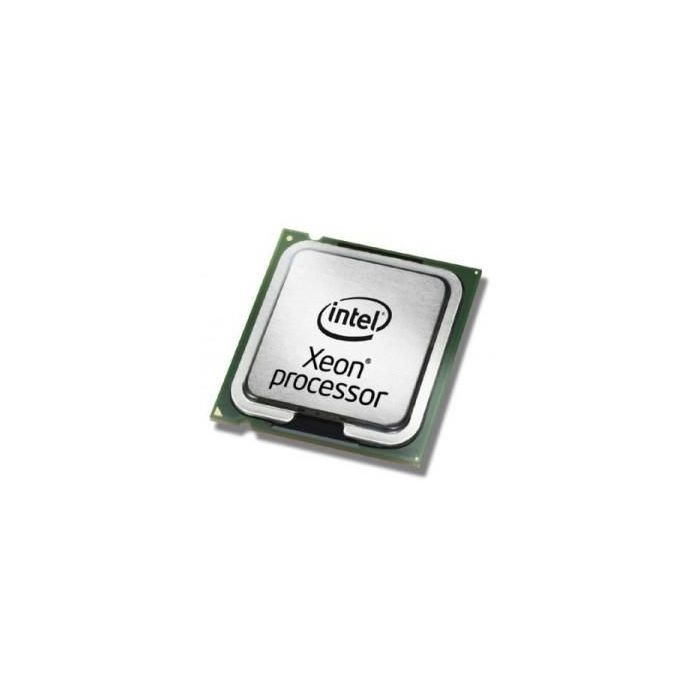

Intel Intel® Xeon® Processor X5570 <br />(8M Cache, 2.93 GHz, 6.40 GT/s Intel® QPI)
Leverbaar op bestelling
€ 39,95
Op voorraad
SKU
SLBF3-RFB
Designed for industry-leading performance and maximum energy efficiency, these versatile 1-way and 2-way 64-bit multi-core servers and workstations are ideally suited to a wide range of infrastructure, cloud, high-density, and high performance computing (HPC) applications.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Designed for industry-leading performance and maximum energy efficiency, these versatile 1-way and 2-way 64-bit multi-core servers and workstations are ideally suited to a wide range of infrastructure, cloud, high-density, and high performance computing (HPC) applications.
Specifications
| Bandwidth | 32000 MB/s |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | NA |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 3A991.A.1 |
| Idle States | Yes |
| Images Type Map | <lt/>div<gt/><lt/>img src="https://ark.intel.com/inc/images/diagrams/diagram-17.gif" title="Block Diagram" /<gt/><lt/>img src="https://ark.intel.com/inc/images/diagrams/diagram-16.gif" title="Block Diagram" /<gt/><lt/>/div<gt/> |
| Market segment | Server |
| Number of Graphics & IMC Die Transistors | 731 M |
| Number of Processing Die Transistors | 731 M |
| Physical Address Extension (PAE) | 40 Bit |
| Processing Die size | 263 mm² |
| ECC | Yes |
| Maximum internal memory supported by processor | 144 GB |
| Memory channels | Triple-channel |
| Memory types supported by processor | DDR3-SDRAM |
| Maximum operating temperature | 75 °C |
| Tcase | 75 °C |
| Cache memory | 8 MB |
| Maximum internal memory | 147456 MB |
| Box | No |
| Bus type | QPI |
| Component for | Server/workstation |
| Cooler included | No |
| CPU multiplier (bus/core ratio) | 22 |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| Number of QPI links | 2 |
| Package type | Tray |
| Processor ARK ID | 37111 |
| Processor base frequency | 2,93 GHz |
| Processor boost frequency | 3,33 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor code | SLBF3 |
| Processor codename | Nehalem EP |
| Processor cores | 4 |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor lithography | 45 nm |
| Processor manufacturer | Intel |
| Processor model | X5570 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5500 Series |
| Processor socket | LGA 1366 (Socket B) |
| Processor threads | 8 |
| Stepping | D0 |
| System bus rate | 6,4 GT/s |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Born on date | Q1'09 |
| Bus bandwidth | 6,4 |
| Bus speed | 6.4 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q1'09 |
| Maximum memory | 144 GB |
| Processor brand name | Intel Xeon |
| Processor core voltage | 0.75 -1.35 V |
| Product family | Intel Xeon Processor 5000 Sequence |
| Product name | Intel Xeon X5570 (8M Cache, 2.93 GHz, 6.40 GT/s Intel QPI) |
| Product type | Processor |
| Status | Discontinued |
| Supported memory types | DDR3-SDRAM |
| Processor package size | 42.5mm x 45mm mm |
| Warranty | 1 year |
| Merk | Intel |
|---|---|
| Part number (MPN) | SLBF3-RFB |
| EAN | 5706998284266 |
