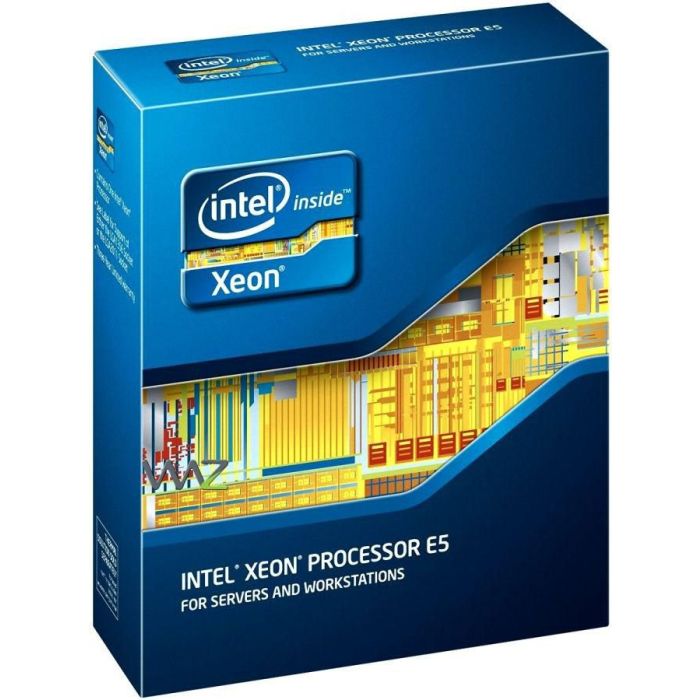

Intel Intel® Xeon® Processor E5-4620 <br />(16M Cache, 2.20 GHz, 7.20 GT/s Intel® QPI)
Leverbaar op bestelling
Servers, workstations, and storage solutions based on the new Intel® Xeon® processor E5 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to make data centers more flexible and efficient.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Servers, workstations, and storage solutions based on the new Intel® Xeon® processor E5 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to make data centers more flexible and efficient. From virtualization and cloud computing solutions to design automation or real-time financial transactions, you’ll be delighted by better than ever performance no matter what tasks you face.
Your investment in industry standard technology from Intel combined with innovative solutions from partners help future-proof your data center with infrastructure that grows with your business.
**Technology to scale innovative private cloud services**
Today’s private clouds enable greater business agility and efficiency by delivering innovative and scalable services that drive value back into the organizations they serve. Building and managing these services require systems that scale to meet your ever changing needs, while delivering solutions to the challenges IT managers face every day. Server and storage platforms based on the Intel® Xeon® processor E5 family are built to be at the heart of today’s data centers and enable powerful, versatile private cloud solutions.
**New Intel® Xeon® processor E5: a new performance sweet spot**
The Intel® Xeon® processor E5 family support key cloud requirements that make your data center agile and more responsive to changing business needs. Maintaining industry leadership for power efficiency and continuing Intel Xeon processor performance advancements, the Intel® Xeon® processor E5 family gives you additional performance when you need it for single- and multi-threaded applications, including increased floating-point performance for technical computing workloads.
Specifications
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
|---|---|
| CPU configuration (max) | 4 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Idle States | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express CEM revision | 3.0 |
| PCI Express slots version | 3.0 |
| Scalability | 4S |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| ECC | Yes |
| Maximum internal memory supported by processor | 1,5 TB |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1066, 1333, 800 |
| Memory types supported by processor | DDR3-SDRAM |
| Cache memory | 16 MB |
| Compatibility | Intel S4600LT2, S4600LH2, R2208LT2HKC4, R2304LT2HVC, R2304LH2HKC, R2208LH2HKC2 |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Maximum internal memory | 393216 MB |
| Bus type | QPI |
| Component for | Server/workstation |
| Cooler included | Yes |
| L3 cache speed | 2,2 GHz |
| Memory bandwidth supported by processor (max) | 42,6 GB/s |
| Number of QPI links | 2 |
| Package type | Box |
| Processor ARK ID | 64607 |
| Processor base frequency | 2,2 GHz |
| Processor boost frequency | 2,6 GHz |
| Processor cache | 16 MB |
| Processor cache type | Smart Cache |
| Processor code | SR0L4 |
| Processor codename | Sandy Bridge EP |
| Processor lithography | 32 nm |
| Processor manufacturer | Intel |
| Processor model | E5-4620 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-4600 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 16 |
| Stepping | C2 |
| System bus rate | 7,2 GT/s |
| Thermal Design Power (TDP) | 95 W |
| VID Voltage Range | 0.6 - 1.35 V |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Technology 2.0 frequency | 2,6 GHz |
| Intel® vPro™ Platform Eligibility | No |
| Born on date | Q2'12 |
| Bus bandwidth | 7,2 |
| Bus speed | 7.2 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q2'12 |
| Maximum memory | 384 GB |
| Processor brand name | Intel Xeon |
| Processor core voltage | 0.6-1.35 V |
| Product family | Intel Xeon Processor E5 Family |
| Product name | Intel Xeon E5-4620 (16M Cache, 2.20 GHz, 7.20 GT/s Intel QPI) |
| Product type | Processor |
| Status | Discontinued |
| Supported memory types | DDR3-SDRAM |
| Processor package size | 52.5mm x 45mm mm |
| Warranty | 1 year |
| Merk | Intel |
|---|---|
| Part number (MPN) | SR0L4-RFB |
