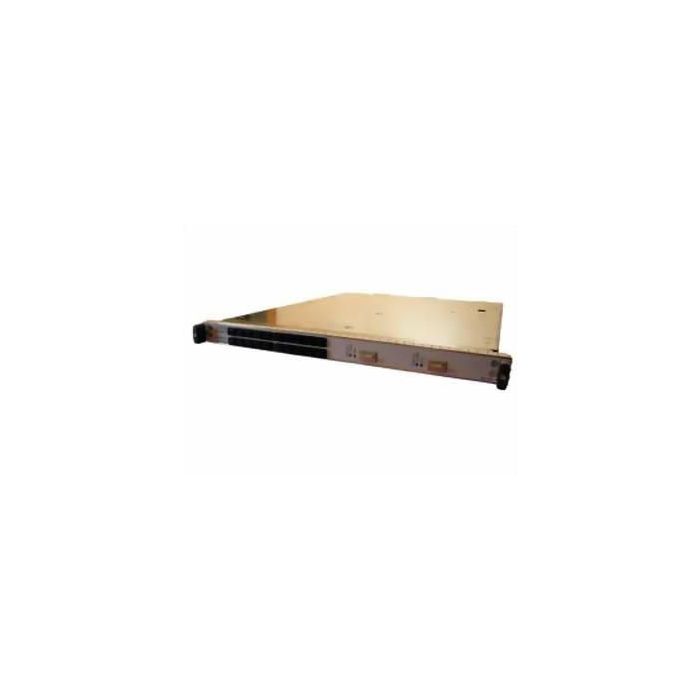

Juniper Networks Dense Port Concentrator - Expansion module - Gigabit Ethernet - 20 + 2 ports
Leverbaar op bestelling
A DPC provides multiple physical interfaces and Packet Forwarding Engines on a single board that installs into a slot within the MX240, MX480, and MX960 3D Universal Edge Routers. A DPC receives incoming packets from the network and sends outgoing packets to the network.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
A DPC provides multiple physical interfaces and Packet Forwarding Engines on a single board that installs into a slot within the MX240, MX480, and MX960 3D Universal Edge Routers. A DPC receives incoming packets from the network and sends outgoing packets to the network. The Packet Forwarding Engines on a DPC are equipped with purpose-built ASICs that perform packet processing and forwarding.
When a slot is not occupied by a DPC, you must insert a blank DPC to fill the empty slot and ensure proper cooling of the system. For complete information about installing and handling DPCs, see the hardware guide for your router.
Specifications
| Hot-swap | No |
|---|---|
| Internal | Yes |
| Product colour | Multicolour |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000, 10000 |
| Full duplex | Yes |
| Maximum data transfer rate | 40000 Mbit/s |
| Maximum operating distance | 100 m |
| Web-based management | Yes |
| Wi-Fi | No |
| Connector(s) | 22 |
| Data transfer rate | 40 Gbit/s |
| Fiber Channel over Ethernet | No |
| Intel Data Direct I/O Technology | No |
| Intel Ethernet Power Management | No |
| Link/Act LED | Yes |
| Network ready | Yes |
| Power LED | No |
| Wireless connection | No |
| Connectivity technology | Wired |
| Interface | Ethernet |
| Input current | 6.94 A |
| Output voltage | 48 V |
| Power consumption (typical) | 333 W |
| USB powered | No |
| Compatible operating systems | Junos OS9.2 |
| Warranty | 1 year |
| Merk | Juniper |
|---|---|
| Part number (MPN) | DPCE-R-20GE-2XGE-RFB |
