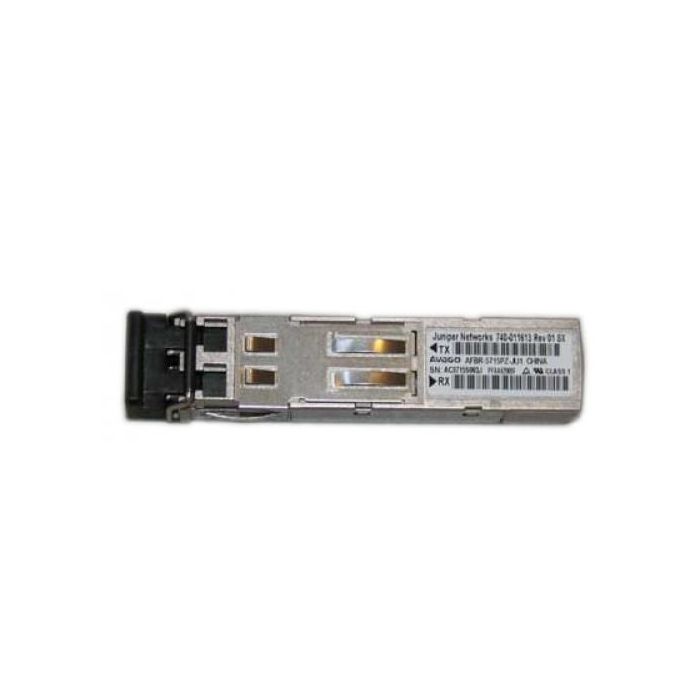

Juniper SFP 1000BASE-SX, LC, 850nm, 550m reach on MMF transceiver module
Leverbaar op bestelling
€ 28,96
Op voorraad
SKU
EX-SFP-1GE-SX-RFB
This is an optional uplink module for EX4200 switches support SFP, SFP+, or XFP transceivers. The Gigabit Ethernet SFP, SFP+, or XFP transceivers installed in EX4200 switches support digital optical monitoring (DOM).
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
This is an optional uplink module for EX4200 switches support SFP, SFP+, or XFP transceivers. The Gigabit Ethernet SFP, SFP+, or XFP transceivers installed in EX4200 switches support digital optical monitoring (DOM).
Use only optical transceivers and optical connectors purchased from Juniper Networks for your EX Series switches.
Specifications
| Certification | MSA |
|---|---|
| Compatible products | Juniper EX4200 |
| Hot-Plug support | Yes |
| Plug and Play | Yes |
| Operating relative humidity (H-H) | 10 - 80 procent |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 10 - 85 procent |
| Storage temperature (T-T) | -40 - 85 °C |
| Auto MDI/MDI-X | Yes |
| Cabling technology | 1000BASE-SX |
| Fiber cable diameters supported (core/cladding) | 50/125, 62.5/125 |
| Fiber optic connector | LC |
| Fiber ports quantity | 1 |
| Interface type | SFP |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 550 m |
| Multi-mode fiber (MMF) supported | Yes |
| Rx power (min) | -32 dBmW |
| SFP transceiver standard | SX |
| SFP transceiver type | Fiber optic |
| Tx power (max) | -3 dBmW |
| Tx power (min) | -9,5 dBmW |
| Wavelength | 850 nm |
| Warranty | 1 year |
| Merk | Juniper |
|---|---|
| Part number (MPN) | EX-SFP-1GE-SX-RFB |
| EAN | 5706998245656 |
