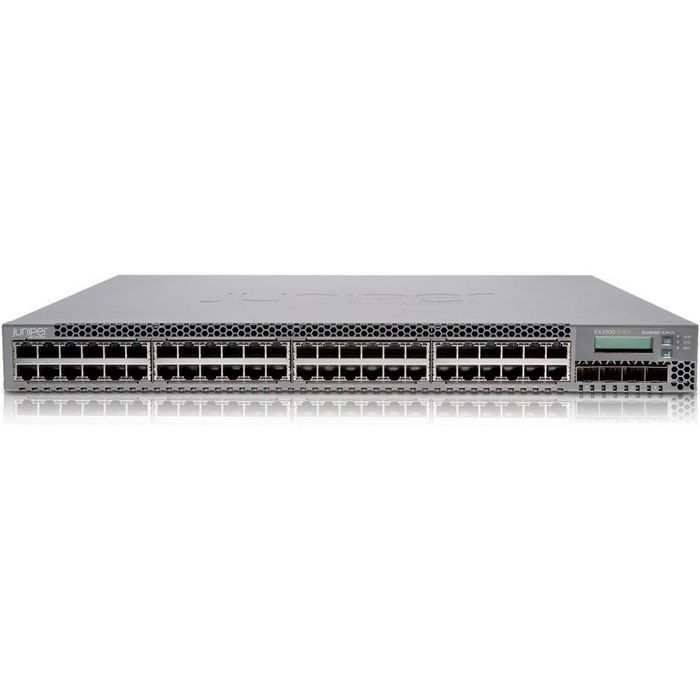

Juniper EX3300, 48-port PoE+, 1GB/1GB, 1GHz
Leverbaar op bestelling
EX3300 Ethernet switches are cost-effective enterprise access solutions for data center environments that support converged data, voice, and video. Models come with 24 or 48 10/100/1000BASE-T ports and four GbE/10GbE SFP/SFP+ uplink ports.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
EX3300 Ethernet switches are cost-effective enterprise access solutions for data center environments that support converged data, voice, and video. Models come with 24 or 48 10/100/1000BASE-T ports and four GbE/10GbE SFP/SFP+ uplink ports.
The EX3300 switches support IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+. Optimized for the data center, the switches offer front-to-back and back-to-front cooling options, and can be configured with a DC power supply. Up to 10 EX3300 switches can be interconnected and operated as a single device using Juniper’s Virtual Chassis technology.
Specifications
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 176 Gbit/s |
| Throughput | 130 Mpps |
| Certification | - AS/NZS CISPR 22 Class A, - CE, - CISPR 22 Class A, - EN 300386, - EN 55022 Class A, - EN 55024, - FCC 47CFR Part 15 Class A, - ICES-003 Class A, - VCCI Class A |
| Form factor | 1U |
| Housing material | Metal |
| LED indicators | Link, Status |
| Number of fans | 1 ventilator(en) |
| Product colour | Black |
| Rack mounting | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Web-based management | Yes |
| Multicast support | Yes |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Number of VLANs | 4096 |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Operating relative humidity (H-H) | 10 - 85 procent |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | 0 - 95 procent |
| Storage temperature (T-T) | -40 - 70 °C |
| Manual | Yes |
| Flash memory | 1024 MB |
| Internal memory | 1024 MB |
| Noise level | 42,8 dB |
| Processor frequency | 1000 MHz |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP/SFP+ slots quantity | 4 |
| SFP+ module slots quantity | 4 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 900 W |
| Power over Ethernet (PoE) | Yes |
| Management protocols | SSH, DNS, PACL, VACL, RACL |
| Supported network protocols | NTP |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Warranty | 1 year |
| Merk | Juniper |
|---|---|
| Part number (MPN) | EX3300-48P-RFB |
| EAN | 5704174101833 |
