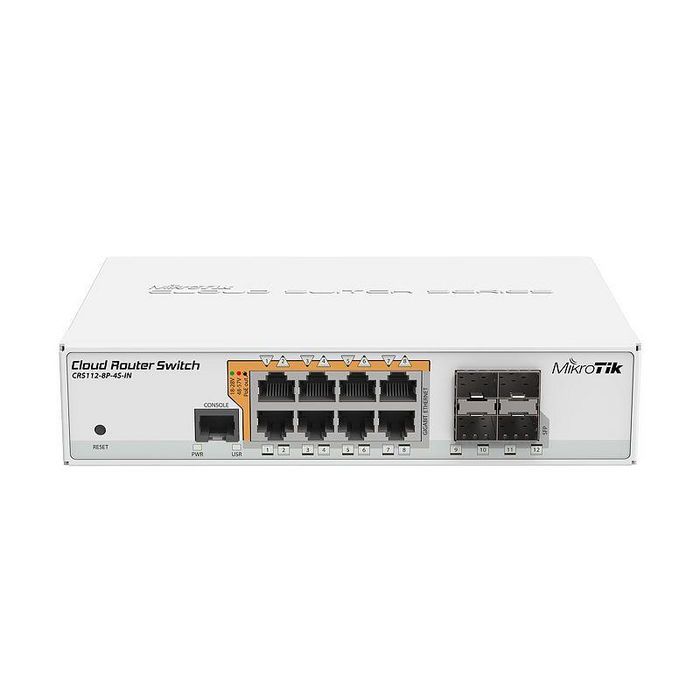

MikroTik 8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5
Op voorraad: 8 stuks
CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins
manual pdf ( Engels ) User manual
leaflet ( Engels ) Product Brochure
Specifications
| Product colour | White |
|---|---|
| 10G support | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Operating temperature (T-T) | -20 - 60 °C |
| AC adapter included | Yes |
| Built-in processor | Yes |
| Compatible operating systems | RouterOS L5 |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Processor frequency | 400 MHz |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Power connector | DC-in jack |
| SFP module slots quantity | 4 |
| DC input voltage | 18 - 57 V |
| Power consumption (max) | 10 W |
| Power over Ethernet (PoE) | Yes |
| Warranty | 15 Month(s) |
| Merk | MikroTik |
|---|---|
| Part number (MPN) | CRS112-8P-4S-IN |
| EAN | 4752224002105 |
