MikroTik 4.7 - 5.875 GHz, 30 dBi, 100 W, 50 ohms, Dual Polarization, 201 kph, 3-10 cm Mount Pole, White
Op voorraad: 2 stuks
mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

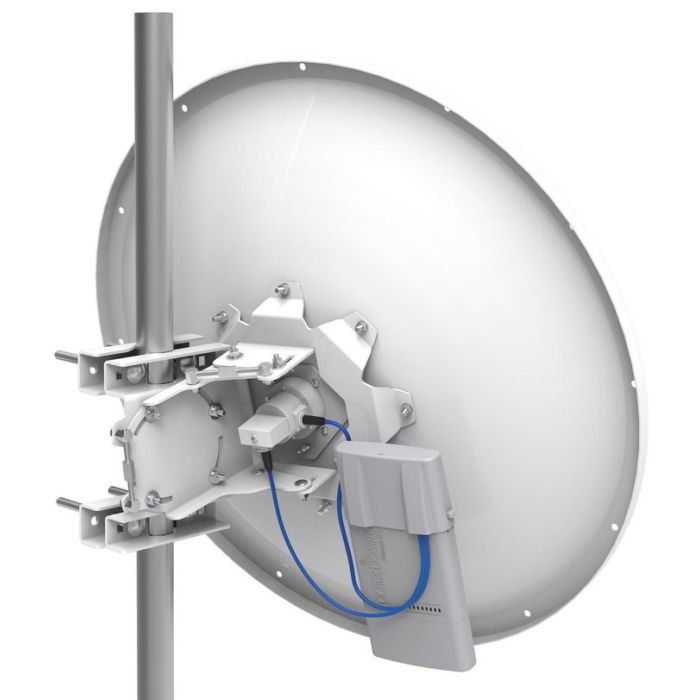

Note: Basebox wireless device pictured for illustrative purposes. It is not included
Datasheet ( Engels )
User Manual ( Engels )
Specifications
| Antenna connector type | RP-SMA |
|---|---|
| Polarization | Dual polarization |
| Power handling | 100 W |
| Product colour | White |
| Purpose | Outdoor |
| Voltage Standing Wave Ratio (VSWR) | 1.8 |
| Quantity | 1 |
| Quantity per pack | 1 stuk(s) |
| Antenna gain level (max) | 30 dBi |
| Frequency band | 4.7 - 5.9 GHz |
| Impedance | 50 Ohm |
| Vertical beam width | 2,5 ° |
| Warranty | 15 Month(s) |
| Merk | MikroTik |
|---|---|
| Part number (MPN) | MTAD-5G-30D3-PA |
| EAN | 4752224000255 |
