MikroTik RB912R-2nD-LTm, none LTE (slot for miniPCI-e LTE card available), 4 W, 139 x 77 x 28,5 mm
Op voorraad: 1 stuks

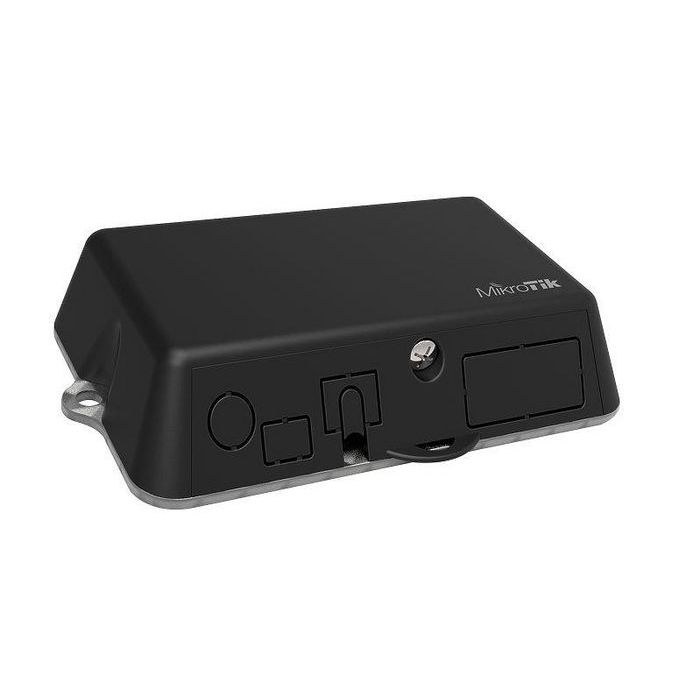

The LtAP mini is a small waterproof wireless access point with integrated LTE antennas (with two u.fl pigtails) and miniPCI-e slot, so you can use your own LTE modem of your choice.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The LtAP mini is a small waterproof wireless access point with integrated LTE antennas (with two u.fl pigtails) and miniPCI-e slot, so you can use your own LTE modem of your choice.
The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.
LtAP mini has a special enclosure with with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform. External GPS antenna is available for ordering separately (not included, product code GPSANT).
manual pdf ( Engels ) User manual
Specifications
| Antenna gain level (max) | 1,5 dBi |
|---|---|
| Internal | No |
| Placement | Table |
| Product colour | Black |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Ethernet LAN data rates | 10, 100 |
| Maximum data transfer rate | 54 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Wi-Fi data rate (max) | 54 Mbit/s |
| Operating temperature (T-T) | -40 - 70 °C |
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 64 MB |
| Operating system installed | RouterOS |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| USB connector type | Micro-USB |
| WAN connection | Mobile network (SIM) |
| AC input voltage | 8 - 30 V |
| Input voltage | 8 - 30 V |
| Power consumption (max) | 4 W |
| Warranty | 15 Month(s) |
| Merk | MikroTik |
|---|---|
| Part number (MPN) | RB912R-2ND-LTM |
| EAN | 4752224000637 |
