MikroTik 802.11b/g/n, QCA9533 650 MHz, 64 MB RAM, 16 MB Flash, PoE, RouterOS, White
Leverbaar op bestelling

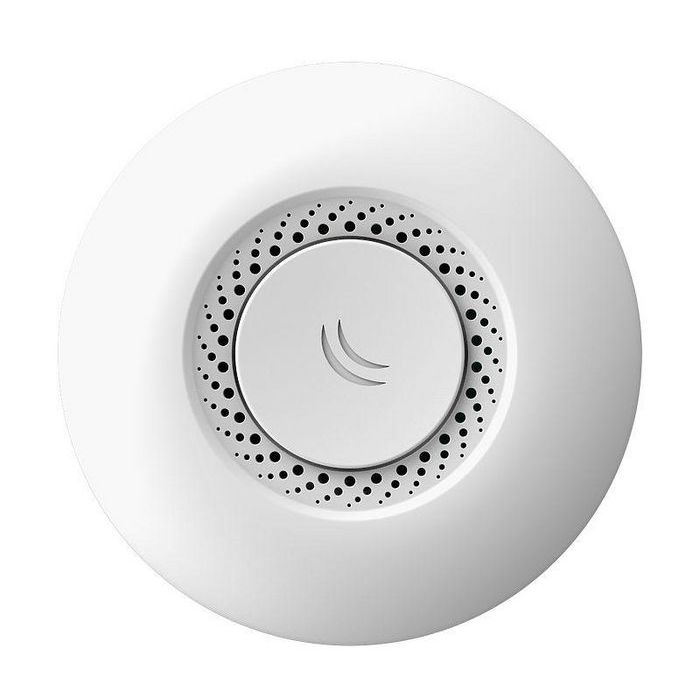

RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.
cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.
Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.
manual pdf ( Engels ) User manual
other digital assets ( Engels ) Quick Guide
leaflet ( Engels ) Product Brochure
Specifications
| Antenna gain level (max) | 2 dBi |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Placement | Ceiling |
| Product colour | White |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10, 100 |
| Frequency band | 2.4 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Receiver sensitivity | 11MBit/s: -89 @ 22dBm Tx, 1MBit/s: -96 @ 22dBm Tx, 54MBit/s: -74 @ 18dBm Tx, 6MBit/s: -93 @ 20dBm Tx, MCS0: -93 @ 20dBm Tx, MCS7: -71 @ 26dBm Tx |
| Transmitting power | 22 dBmW |
| Wi-Fi data rate (max) | 54 Mbit/s |
| Operating temperature (T-T) | -40 - 70 °C |
| AC adapter included | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 64 MB |
| Operating system installed | RouterOS |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| AC input voltage | 11 - 57 V |
| Input voltage | 11 - 57 V |
| Power consumption (max) | 4 W |
| Power over Ethernet (PoE) | Yes |
| Warranty | 15 Month(s) |
| Merk | MikroTik |
|---|---|
| Part number (MPN) | RBCAP2ND |
| EAN | 4752224001191 |
