MikroTik 600 MHz, 64 MB, 16 MB, AR9344, 24.5 dBi, 6 W, 560 g
Leverbaar op bestelling
€ 265,95
Op voorraad
SKU
RBLHG5KIT

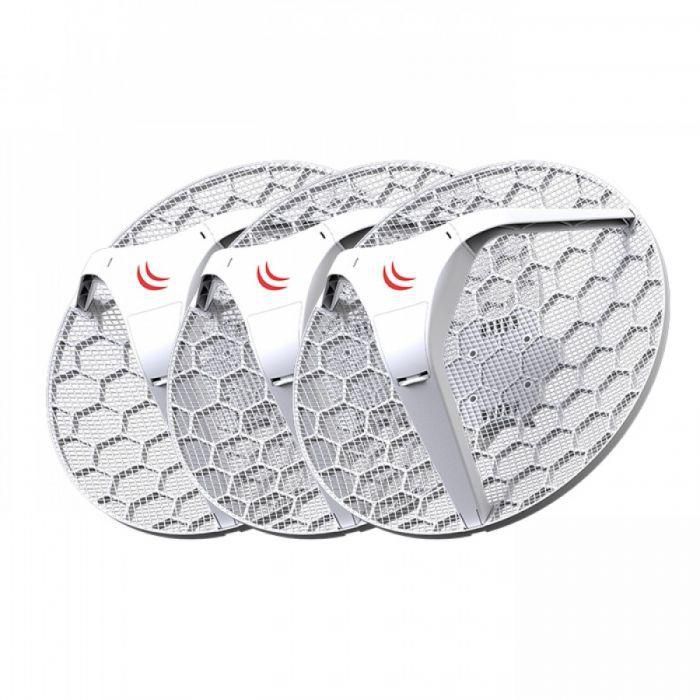

**LHG 5**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**LHG 5**
The Light Head Grid (LHG) is a compact and light 5GHz 802.11 a/n wireless device
with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It
is perfect for point to point links or for use as a CPE at longer distances and supports
Nv2 TDMA protocol.
The grid design ensures protection against wind, and the fact that the antenna
element is built into the wireless unit means no loss on cables.
The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.
leaflet ( Engels ) Product Brochure
Specifications
| Isolation | 20 dB |
|---|---|
| Maximum cable loss with connectors | 10 dB |
| Polarization | Dual polarization |
| Product colour | White |
| Sidelobes level | 25 dB |
| Survival wind speed | 205 km/h |
| Voltage Standing Wave Ratio (VSWR) | 1.925:1 |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | -40 - 70 °C |
| Manual | Yes |
| Quantity | 3 |
| Quantity per pack | 3 stuk(s) |
| Antenna gain level (max) | 24,5 dBi |
| Built-in processor | Yes |
| Cabling technology | 10/100Base-T(X) |
| Flash memory | 16 MB |
| Frequency band | 5 GHz |
| Gain | 24,5 dBi |
| Internal memory | 64 MB |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Networking type | 10/100 |
| Processor frequency | 600 MHz |
| Input voltage | PoE 11 - 30 V |
| Power consumption (max) | 6 W |
| Power source type | AC, DC |
| Diameter | 39,1 cm |
| Warranty | 15 Month(s) |
| Merk | MikroTik |
|---|---|
| Part number (MPN) | RBLHG5KIT |
| EAN | 4752224003867 |
