MikroTik 1x 10/100 Mbit/s RJ-45, 600 MHz, PoE, 10-30 V, 129x129x34 mm, RouterOS
Op voorraad: 5 stuks

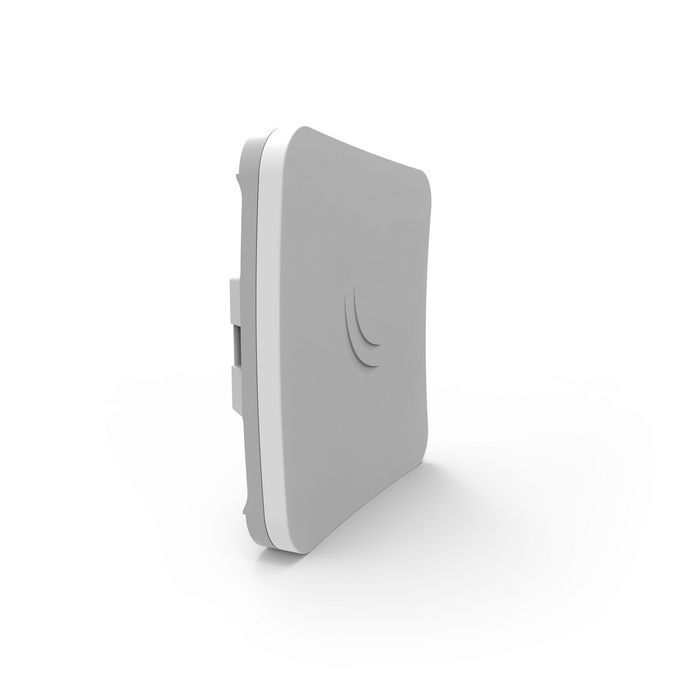

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner (see photos for comparison).
The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).
other digital assets ( Engels ) Quick Start Guide
leaflet ( Engels ) Product Brochure
Datasheet ( Engels )
User Manual ( Engels )
Specifications
| Antenna gain level (max) | 16 dBi |
|---|---|
| Internal | No |
| Product colour | White |
| 2.4 GHz | No |
| 5 GHz | Yes |
| Ethernet LAN data rates | 10, 100 |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Receiver sensitivity | 54MBit/s20 -80, 6MBit/s 25 dBm -96, MCS0 25 -96, MCS7 19 -75 |
| Operating relative humidity (H-H) | -40 - 70 procent |
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 64 MB |
| Operating system installed | RouterOS |
| Ethernet LAN (RJ-45) ports | 1 |
| AC input voltage | 10 - 30 V |
| Input voltage | 10 - 30 V |
| Power consumption (max) | 6 W |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | Not supported |
| Warranty | 15 Month(s) |
| Merk | MikroTik |
|---|---|
| Part number (MPN) | RBSXTSQ5ND |
| EAN | 4752224004659 |
