MikroTik An out-of-the-box gateway solution for LoRa® technology, 902-928 MHz
Leverbaar op bestelling

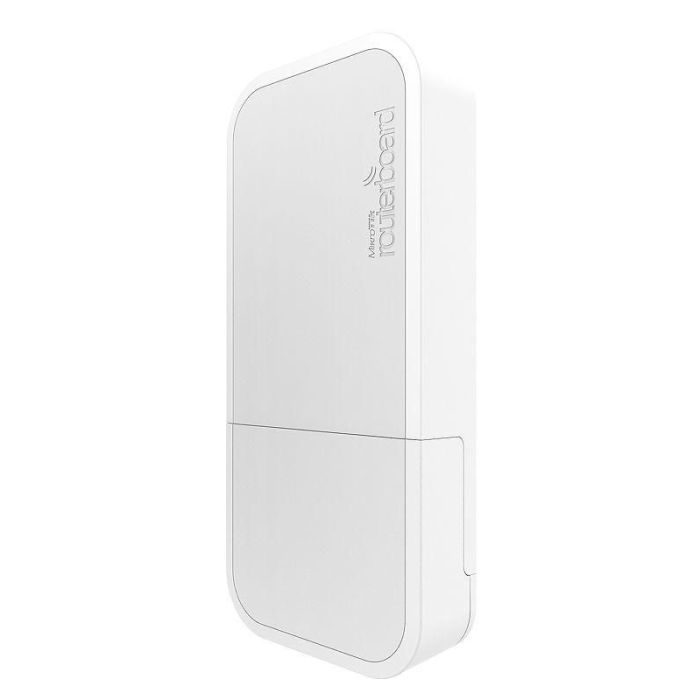

wAP LR9 kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
wAP LR9 kit – an out-of-the-box solution to use LoRa® technology. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.
This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.
You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we suggest adding MikroTik Antenna kit for LoRa®.
Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)
Functional and non-intrusive design, astonishing durability and great value – that is the wAP LR9 kit, the long-awaited solution for LoRa® technology for enthusiasts of any level.
*) the device has no built in LTE modem, the SIM slot can only be used, if LoRa interface card is removed and replaced by an LTE modem
leaflet ( Engels ) Product Brochure
Specifications
| Antenna gain level (max) | 6,5 dBi |
|---|---|
| Antenna type | Internal |
| International Protection (IP) code | IP54 |
| Product colour | White |
| 2.4 GHz | Yes |
| 5 GHz | No |
| 6 GHz | No |
| Ethernet LAN data rates | 10, 100 |
| Frequency band | 902 - 928 GHz |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Operating temperature (T-T) | -40 - 60 °C |
| Number of products included | 1 stuk(s) |
| Quantity per pack | 1 stuk(s) |
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 64 MB |
| Operating system installed | RouterOS |
| Processor frequency | 650 MHz |
| Processor model | Qualcomm Atheros QCA9531 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 0 |
| USB 2.0 ports quantity | 0 |
| Power consumption (max) | 7 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Security algorithms | Not supported |
| Warranty | 15 Month(s) |
| Merk | MikroTik |
|---|---|
| Part number (MPN) | RBWAPR-2ND&R11E-LR9 |
| EAN | 4752224007025 |
