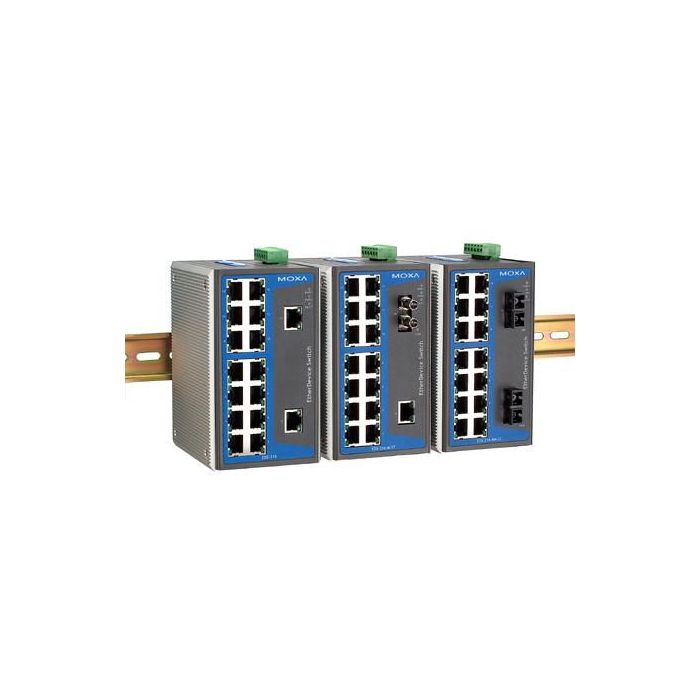

Moxa Industrial unmanaged Ethernet switch, 15x 10/100BaseT(X) + 1x 100BaseFX multi-mode ST, relay warning, redundant DC power, IP30, -40 to 75°C
Op voorraad: 2 stuks
This 16-port Ethernet switch provides an economical solution for industrial Ethernet connections, and its built-in relay warning function alerts maintainers when power failures or port breaks occur. It is designed for harsh industrial environments, including Class I Div.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
This 16-port Ethernet switch provides an economical solution for industrial Ethernet connections, and its built-in relay warning function alerts maintainers when power failures or port breaks occur. It is designed for harsh industrial environments, including Class I Div. 2 / Zone 2 hazardous locations.
**Fibre Uplinks**
Fibre ports extend transmission distance and improve immunity to electrical noise.
**Industrial-grade Reliability**
Redundant dual DC power inputs and a 100% burn-in test ensure reliable operation.
**Specifications**
- Ports: 15x 10/100BaseT(X) + 1x 100BaseFX multi-mode ST
- Alarm: relay output for power failure and port break
- Power: redundant dual DC inputs
- Housing: IP30 metal
- Operating temperature: -40 to 75°C
leaflet ( Engels ) Product Brochure
Specifications
| Maximum data transfer rate | 0 Gbit/s |
|---|---|
| Safety | UL508, UL60950-1, EN60950-1 |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Flow control support | Yes |
| Operating temperature (T-T) | -40 - 75 °C |
| Relative humidity | 5 - 95 procent |
| Storage temperature (T-T) | -40 - 85 °C |
| Connectivity LEDs | PWR1, PWR2, 10/100M (TP), 100M |
| Dimensions (WxDxH) | 80.5 x 105 x 135 mm |
| Mounting interface | DIN, Wall |
| Power requirements | 24 VDC (12 - 45 VDC) |
| Mean time between failures (MTBF) | 257000 uur |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Power over Ethernet (PoE) | No |
| Warranty | 2 years |
| Merk | Moxa |
|---|---|
| Part number (MPN) | 41509 |
| EAN | 5703431415096 |
