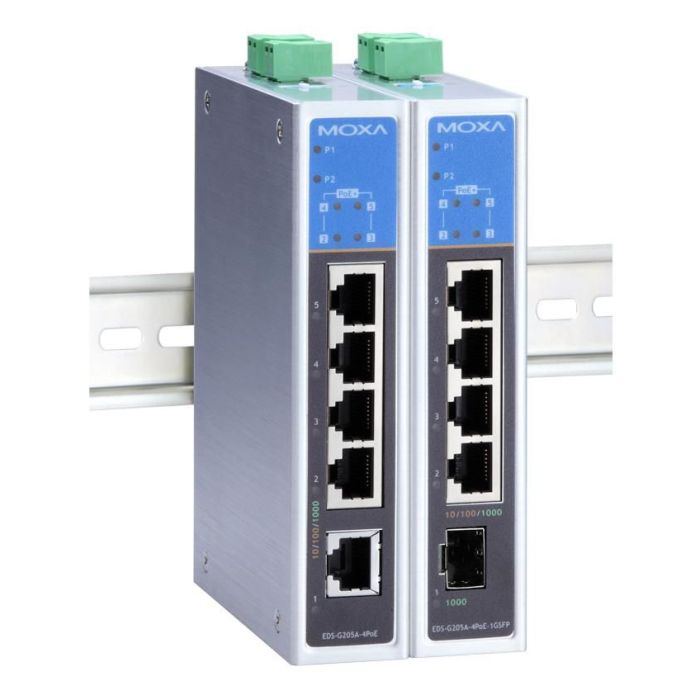

Moxa 5-port full Gigabit unmanaged switch with 4 IEEE 802.3af/at PoE+ ports, up to 36 W per port, redundant 12/24/48 VDC, -40 to 75°C
Leverbaar op bestelling
This smart 5-port unmanaged full Gigabit switch supports Power over Ethernet on four ports. As power source equipment, it centralizes the power supply and powers IEEE 802.3af/at devices without additional wiring, while providing an economical high-bandwidth solution.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
This smart 5-port unmanaged full Gigabit switch supports Power over Ethernet on four ports. As power source equipment, it centralizes the power supply and powers IEEE 802.3af/at devices without additional wiring, while providing an economical high-bandwidth solution.
**Smart PoE**
Intelligent power detection and classification, plus smart PoE overcurrent and short-circuit protection, safeguard both the switch and the powered devices.
**High Bandwidth**
Full Gigabit ports and 9.6 KB jumbo frame support suit high-resolution video and other bandwidth-intensive applications. An SFP slot provides a fibre uplink.
**Specifications**
- Ports: 4x 10/100/1000BaseT(X) PoE+ + 1x 100/1000BaseSFP
- PoE: IEEE 802.3af/at, up to 36 W per port
- Jumbo frames: 9.6 KB
- Power: redundant 12/24/48 VDC
- Operating temperature: -40 to 75°C
leaflet ( Engels ) Product Brochure
Specifications
| MAC address table | 8000 entries |
|---|---|
| Maximum data transfer rate | 1 Gbit/s |
| Supported data transfer rates | 10/100/1000 Mbps |
| Certification | FCC |
| LED indicators | Yes |
| Product colour | Grey |
| Safety | UL 508 |
| Switch layer | L2 |
| Switch type | Unmanaged |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Power LED | Yes |
| Manual | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Power connector | DC-in jack |
| SFP module slots quantity | 1 |
| SFP/SFP+ slots quantity | 1 |
| Input current | 7.5 A |
| Power over Ethernet (PoE) | Yes |
| DHCP features | DHCP client, DHCP server |
| Warranty | 2 years |
| Merk | Moxa |
|---|---|
| Part number (MPN) | 45351 |
| EAN | 5703431453517 |
