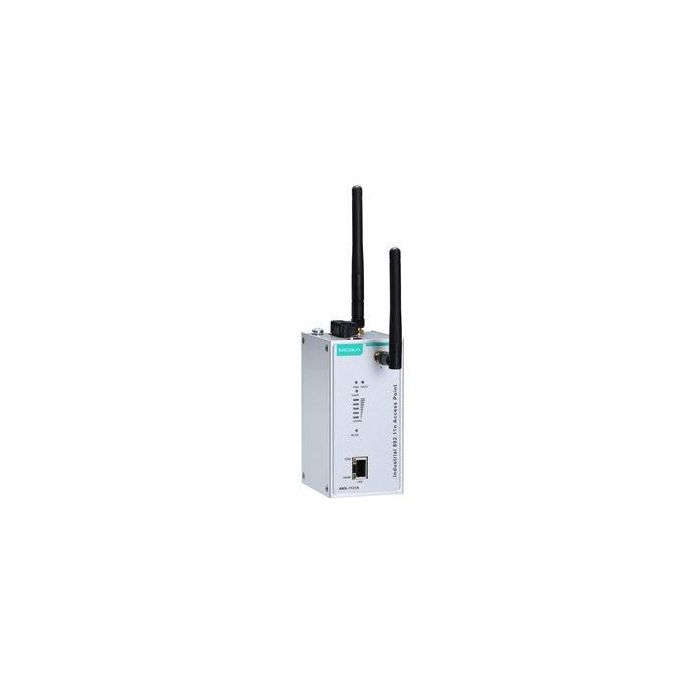

Moxa Industrial IEEE 802.11a/b/g/n wireless AP/client, up to 300 Mbps, 2x2 MIMO, redundant DC power, IP30 aluminium housing, EU band
Leverbaar op bestelling
This industrial wireless AP/client meets the growing need for faster data transmission by supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps. It complies with industrial standards covering operating temperature, power input voltage, surge, ESD and vibration.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
This industrial wireless AP/client meets the growing need for faster data transmission by supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps. It complies with industrial standards covering operating temperature, power input voltage, surge, ESD and vibration.
**Reliable Wireless**
MIMO technology, channel bonding and DFS channel selection improve throughput and help avoid interference. The AP/client operates on either the 2.4 or 5 GHz band and is backward-compatible with 802.11a/b/g.
**Industrial Ruggedness**
Two redundant DC power inputs, integrated antenna and power isolation, and a compact IP30 aluminium housing ensure reliable operation in industrial environments.
**Specifications**
- Wireless: IEEE 802.11a/b/g/n, 2.4 or 5 GHz
- Data rate: up to 300 Mbps
- Antennas: 2x external, 2 dBi, omni-directional
- Ethernet: RJ45
- Power: redundant DC inputs
- Housing: IP30 aluminium
- Region: EU band
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Specifications
| Antenna connector type | RP-SMA |
|---|---|
| Antenna direction type | Omni-directional |
| Antenna features | Detachable antenna |
| Antenna gain level (max) | 2 dBi |
| Antenna type | External |
| Antennas quantity | 2 |
| Number of connectors | 2 |
| Certification | EMC, EMI, EMS |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| LED indicators | Fault, LAN, Link, Power, Status, WAN |
| Placement | Wall |
| Product colour | Silver |
| Reset button | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Channel bandwidth | 20 MHz |
| Channels quantity | 13 kanalen |
| Dynamic Frequency Selection (DFS) | Yes |
| Ethernet LAN data rates | 10, 100, 1000 |
| Frequency band | 2.412 - 5.700 GHz |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 54 Mbit/s |
| Maximum data transfer rate (5 GHz) | 300 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | DSSS, OFDM |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Receiver sensitivity | Typ. -72 @ 54 Mbps, Typ. -74 @ 48 Mbps, Typ. -78 @ 36 Mbps, Typ. -81 @ 24 Mbps, Typ. -85 @ 18 Mbps, Typ. -88 @ 12 Mbps, Typ. -88 @ 9 Mbps, Typ. -90 @ 6 Mbps |
| Spread spectrum method | DSSS, OFDM |
| Transmitting power | 23 dBmW |
| VLAN support | Yes |
| Firmware upgradeable | Yes |
| Syslog | Yes |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95 procent |
| Storage temperature (T-T) | -40 - 85 °C |
| Mounting kit | Yes |
| Quantity per pack | 1 stuk(s) |
| Quick start guide | Yes |
| Number of products included | 1 stuk(s) |
| Package type | Box |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| USB 2.0 ports quantity | 0 |
| AC input voltage | 12 - 48 V |
| Input current | 0.56 A |
| Input voltage | 12 - 48 V |
| Power consumption (max) | 6,96 W |
| Power over Ethernet (PoE) | No |
| DHCP client | Yes |
| DHCP server | Yes |
| Management protocols | DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, Wireless Search Utility, MXview, MXconfig |
| IP address filtering | Yes |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Security algorithms | AES, HTTPS, SSH, SSL/TLS, WPA-TKIP |
| Warranty | 2 years |
| Merk | Moxa |
|---|---|
| Part number (MPN) | 47425 |
| EAN | 5711783430827 |
