Panorama Antennas Bracket Mount 2G/3G/4G/5G Antenna
Op voorraad: 90 stuks

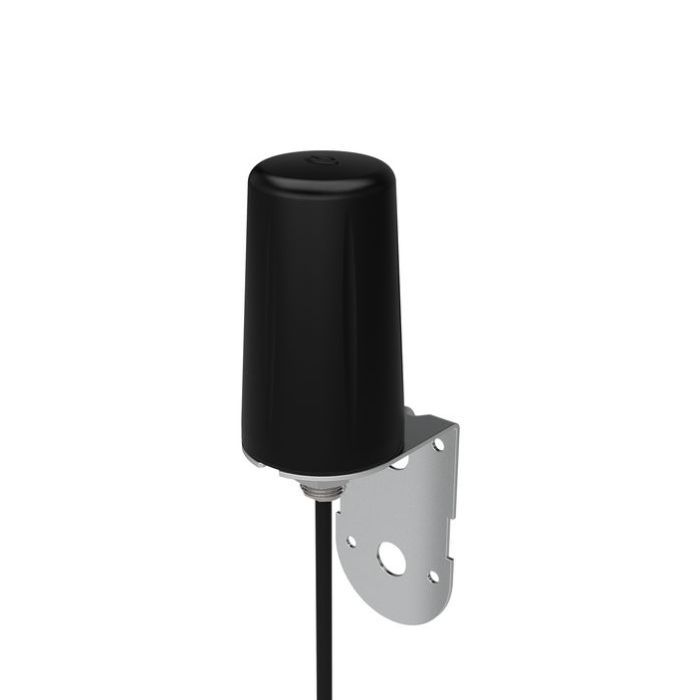

The Panorama B4BE is a robust bracket mount antenna for LTE, M2M and IoT applications.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The Panorama B4BE is a robust bracket mount antenna for LTE, M2M and IoT applications.
The B4BE range has been designed to provide cost effective coverage booster antennas for 2G/3G/4G and 5G devices. The antennas are designed for wall or mast mounting and are weather proof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest.
The omni-directional radiation pattern allows the antenna to be quickly installed while the global Cellular/GSM/LTE coverage provided by the antenna allows it to be utilised for 2G/3G/4G and 5G applications the world over.
The antenna range is supplied in two variants the B4BE-6-60 is fitted with 5mm double shielded CS29 cable and the B4BEE-6-60 variant is fitted with 2.8mm RG174 cable,
leaflet ( Engels ) Product Brochure
Specifications
| Antenna connector type | SMA |
|---|---|
| Antenna type | Omni-directional antenna |
| Cable length | 5 m |
| Housing material | Acrylonitrile styrene acrylate (ASA), Aluminium, Steel |
| International Protection (IP) code | IP66 |
| Mounting | Universal |
| Polarization | Vertical polarization |
| Product colour | Black |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 |
| Operating temperature (T-T) | -40 - 80 °C |
| Mounting kit | Yes |
| Quantity | 1 |
| Quantity per pack | 1 stuk(s) |
| Antenna gain level (max) | 5 dBi |
| Frequency band | 0.617 - 6 GHz |
| Impedance | 50 Ohm |
| Diameter | 4,8 cm |
| Warranty | 1 year |
| Merk | Panorama Antennas |
|---|---|
| Part number (MPN) | B4BE-6-60-5SP |
| EAN | 5055416014474 |
