Planet 2.4G/5GHz Dual Band Omni-directional Antenna
Op voorraad: 11 stuks
€ 36,95
Op voorraad
SKU
ANT-OM5D-KIT
Full 360° Coverage with Greater Penetration
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Full 360° Coverage with Greater Penetration

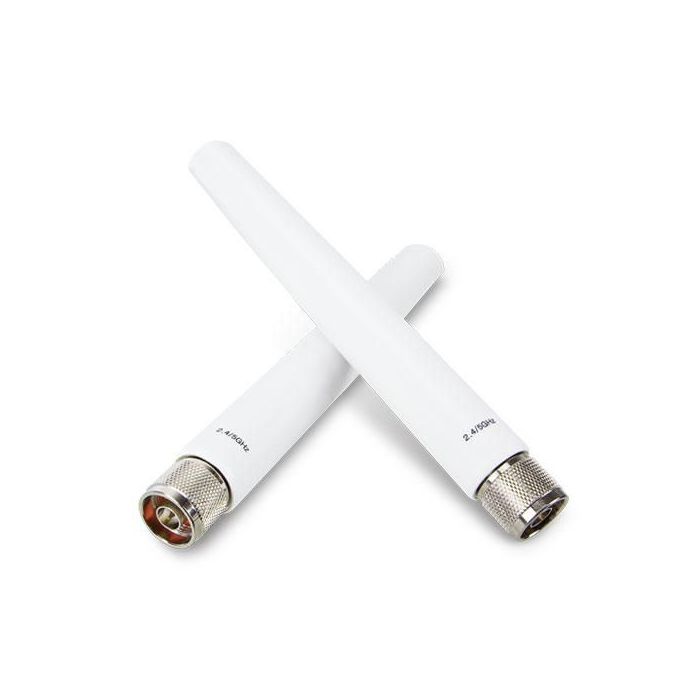

PLANET ANT-OM5D-KIT is a 2.4/5GHz Dual Band Antenna equipped with N-type male connector. The antenna provides a 360-degree horizontal and wider vertical coverage which is quite suitable for outdoor short-range application, especially to provide the wireless access for laptops and smartphones.
With its N-type male connector, it can be directly attached to the antenna connectors of the WNAP-6350, WNAP-7350 and WDAP-8350 without any cumbrous cabling, thus reducing the deployment cost and installer’s effort.
Datasheet ( Engels )
Specifications
| Antenna connector type | N-type |
|---|---|
| Antenna type | Omni-directional antenna |
| Connector gender | Female |
| International Protection (IP) code | IP67 |
| Polarization | Vertical polarization |
| Product colour | White |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Operating relative humidity (H-H) | 0 - 95 procent |
| Operating temperature (T-T) | -5 - 65 °C |
| Antenna gain (2.4 GHz) | 4,5 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain level (max) | 7 dBi |
| Frequency band | 2.4/5 GHz |
| Horizontal beam width | 360 ° |
| Impedance | 50 Ohm |
| Vertical beam width (2.4 GHz) | 80 ° |
| Vertical beam width (5 GHz) | 55 ° |
| Warranty | 2 years |
| Merk | Planet |
|---|---|
| Part number (MPN) | ANT-OM5D-KIT |
| EAN | 4711605281027 |
