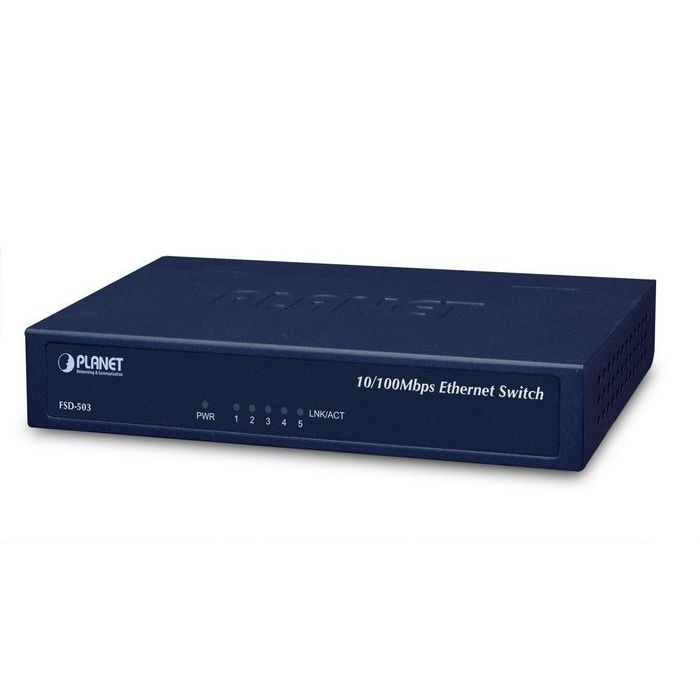

Planet 5-Port 10/100Mbps Fast Ethernet Switch
Op voorraad: 13 stuks
High-speed 10/100Mbps Workgroup Switch
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
High-speed 10/100Mbps Workgroup Switch
PLANET Fast Ethernet Switch FSD-503 provides business and home users with a cost-effective integrated system of small-office / home-office networking. It is with compact-sized metal case design and just right for the network of 10 to 50 users.
Stable Fast Ethernet Switch Performance
The FSD-503 also supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity. The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, and 148,800 packets per second in 100Mbps) and built-in packet buffer help the FSD-503 to boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. With an intelligent address recognition algorithm, the FSD-503 could recognize up to a 2K different MAC addresses and provide 1Gbps switching capacity, which makes the FSD-503 the best in wire-speed packet transfer performance without risk of packet loss.
Flexible Desktop Size Design
The FSD-503 is a fancy-shaped standard metal model that nicely fits in a space-limited environment. With concepts of "easy to install and use", "compact sized design", and "simple troubleshooting", the FSD-503 provides cost-conscious business and home users with a flexible yet cost-effective SOHO / Home networking.
Power Energy Saving
With one power ON/OFF button designed on the rear panel of the FSD-503, it can help users to reduce unnecessary power energy loss while the FSD-503 operation is OFF.
Plug & Play and Easy Installation
All RJ-45 copper interfaces in the FSD-503 support 10/100Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5/5e cables. Supporting standard for auto-MDI/MDI-X can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables. The Flow Control function allows the FSD-503 to support routers and servers for direct connection to this switch with fast and reliable data transfer.
Datasheet ( Engels )
Specifications
| MAC address table | 2000 entries |
|---|---|
| Store-and-forward | Yes |
| Switching capacity | 1 Gbit/s |
| Throughput | 0,744 Mpps |
| Certification | FCC, CE |
| Housing material | Metal |
| LED indicators | Yes |
| On/off switch | Yes |
| Product colour | Blue |
| Rack mounting | No |
| Wall mountable | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Heat dissipation | 6,1 BTU/h |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 procent |
| Storage temperature (T-T) | -10 - 70 °C |
| AC adapter included | Yes |
| Plug and Play | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| DC input voltage | 5 V |
| Input current | 1 A |
| Output current | 1 A |
| Output voltage | 5 V |
| Power consumption (max) | 1,8 W |
| Power over Ethernet (PoE) | No |
| Supported network protocols | CSMA / CD |
| Warranty | 3 years |
| Merk | Planet |
|---|---|
| Part number (MPN) | FSD-503 |
| EAN | 4711213680304 |
