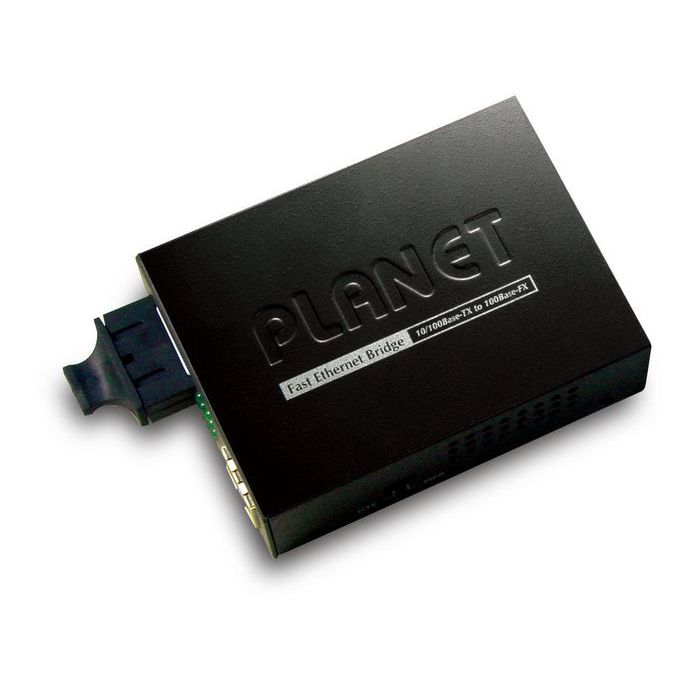

Planet FT-802 - 10/100Base-TX(FX), SC/MM, 2km
Op voorraad: 10 stuks
The PLANET FT-80X is Fast Ethernet Bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (STP) converter. It supports selectable for half-duplex and full-duplex operations and supports a variety of fiber options.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The PLANET FT-80X is Fast Ethernet Bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (STP) converter. It supports selectable for half-duplex and full-duplex operations and supports a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex, the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation, in fiber-optic interface. The fiber port of converter operates at 1310 nm and uses ST, SC, MT-RJ, VF-45 or WDM connectors. Multi-mode models that support distances up to 2 km and single-mode models that support distances up to 15/35/50 km are available.
The FT-80x series are with LFP (Link Fault Pass Through function) (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. The DIP Switch provides disable or enable the LFP function.
LLCF (Link Loss Carry Forward) means when a device connected to the converter and the TP line loss the link, the converter's fiber will disconnect the link of transmit. LLR (Link Loss Return) means when a device connected to the converter and the fiber line loss the link, the converter's fiber will disconnect the link of transmit. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net.
leaflet ( Engels ) Product Brochure
Datasheet ( Engels )
Specifications
| Certification | FCC Class A, CE Class A |
|---|---|
| Housing material | Metal |
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Converter input interface | 100BASE-FX, 100Base-TX, 10Base-T |
| Converter output interface | 100Base-FX |
| Duplex system | Full, Half |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10, 100 |
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Operating relative humidity (H-H) | 5 - 90 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90 procent |
| Storage temperature (T-T) | -40 - 70 °C |
| Fiber cable diameters supported (core/cladding) | 50/125, 62.5/125, 9/125 |
| Fiber mode structure | Multi-mode, Single-mode |
| Maximum transfer distance | 2000 m |
| Sensitivity | -31,8 dBmW |
| Tx power (max) | -14 dBmW |
| Tx power (min) | -23,5 dBmW |
| Wavelength | 1310 nm |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Input current | 2 A |
| Input voltage | 5 V |
| Warranty | 3 years |
| Merk | Planet |
|---|---|
| Part number (MPN) | FT-802 |
| EAN | 4711213680526 |
