Planet 8x 10/100/1000T 802.3at PoE, 2x 10/100/1000T, 24 Gbps, 18 Mpps, LCD Monitor, VLAN, 1.8 kg
Op voorraad: 7 stuks
€ 201,95
Op voorraad
SKU
GSD-1222VHP
**Just “Plug and Watch” for a Quick Solution**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**Just “Plug and Watch” for a Quick Solution**

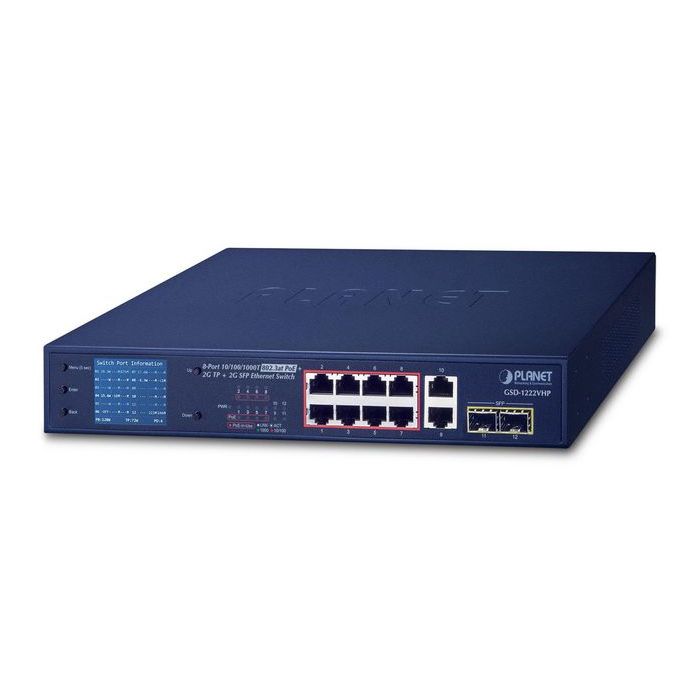

PLANET GSD-1222VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Specifications
| Jumbo frames | 9000 |
|---|---|
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Switching capacity | 24 Gbit/s |
| Throughput | 18 Mpps |
| Certification | FCC 15 A, CE |
| Form factor | 1U |
| Housing material | Metal |
| LED indicators | Link, PoE, Power, Speed |
| Number of fans | 1 ventilator(en) |
| Product colour | Blue |
| Rack mounting | Yes |
| Switch type | Unmanaged |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Heat dissipation | 446 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 procent |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90 procent |
| Storage temperature (T-T) | -10 - 70 °C |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| SFP module slots quantity | 2 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Power consumption (max) | 130 W |
| Power protection features | Short circuit |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Warranty | 3 years |
| Merk | Planet |
|---|---|
| Part number (MPN) | GSD-1222VHP |
| EAN | 4711605283564 |
