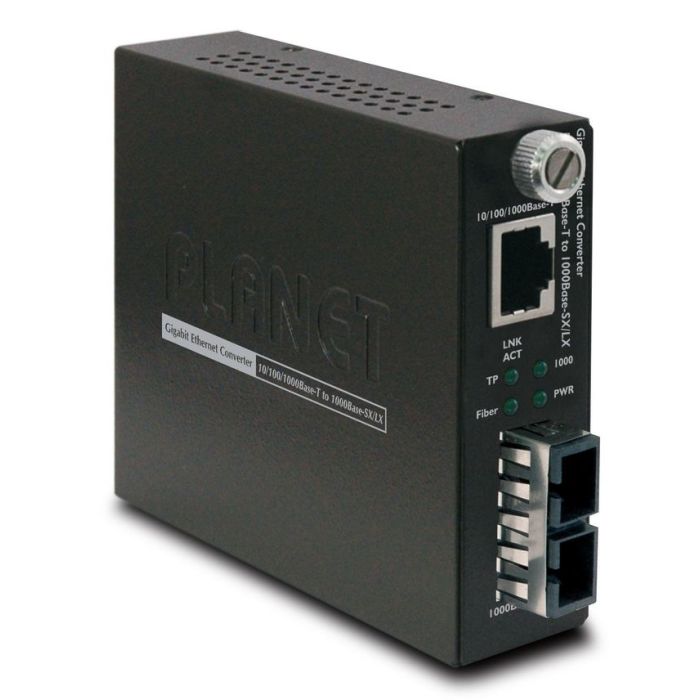

Planet 10/100/1000Base-T to 1000Base-SX(SC,MM) Smart Media Converter, 220m/550m
Op voorraad: 4 stuks
To provide an easy use yet powerful solution for FTTX applications, PLANET has released a new 10/100/1000Base-T to 1000Base-SX/LX Smart Media Converter, GST-80x series, featuring plug & play and smart media conversion functions.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
To provide an easy use yet powerful solution for FTTX applications, PLANET has released a new 10/100/1000Base-T to 1000Base-SX/LX Smart Media Converter, GST-80x series, featuring plug & play and smart media conversion functions.
**Distance Extension with High Performance and Steady Network Communication**
PLANET GST-80x Smart Gigabit Media Converter series extends communication distance with highly Gigabit performance via fiber optical cable. The GST-80x series provides media conversion between 10/100/1000Base-T and 1000Base-SX/LX interfaces such as multi-mode LC/SC connectors (220m / 550m), single-mode LC/SC connectors (10/20/30/40/50/70/120km) and single fiber connectors (WDM,15/60km) for various fiber optic applications.
**Enhanced Smart Management Features**
The GST-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the available smart functions including the auto-negotiation / force for fiber interface and Link Pass-through function (LLCF/LLR). The Link Loss Carry Forward (LLCF) function works with Link Loss Return (LLR) to diagnose network connections. Also, the LLR function can immediately alarm network administrator the media link issue and provide efficient solution to monitoring the entire network.
**Easy Installation**
The GST-80x series allows two segments to connect easily. The Smart Media Converter can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch managed 16-slot media converter chassis (MC-1610MR / MC-1610MR48). When working with the Managed media converter chassis, the GST-80x is able to be managed and its status can be monitored through the local RS-232 console and remote web interface.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Specifications
| Certification | FCC Class A, CE Class A |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Auto MDI/MDI-X | Yes |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-SX |
| Copper ethernet cabling technology | 1000BASE-SX, 1000BASE-T, 10BASE-T, 10GBASE-T |
| Duplex system | Full, Half |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10, 100, 1000 |
| Flow control support | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| Operating relative humidity (H-H) | 5 - 90 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90 procent |
| Storage temperature (T-T) | -40 - 70 °C |
| Fiber cable diameters supported (core/cladding) | 50/125, 62.5/125 |
| Fiber mode structure | Multi-mode |
| Maximum transfer distance | 550 m |
| Sensitivity | -13,5 dBmW |
| Tx power (min) | -9,5 dBmW |
| Wavelength | 850 nm |
| Wavelength-division multiplexing (WDM) | Yes |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Input current | 2 A |
| Input voltage | 5 V |
| Warranty | 3 years |
| Merk | Planet |
|---|---|
| Part number (MPN) | GST-802 |
| EAN | 4711213687617 |
