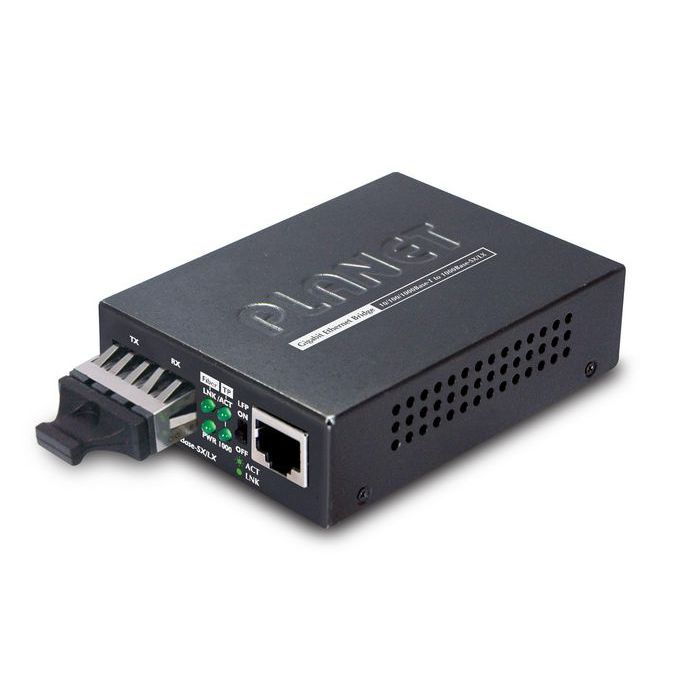

Planet 10/100/1000Base-T to 1000Base-SX (SC, MM) Media Converter
Op voorraad: 102 stuks
Offering the flexibility with all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performing highly stable Gigabit fiber capability, the PLANET Gigabit media converter series GT-80X (GT-802, GT-802S, GT-805A and GT-806A/B) supports conversion between 10/100/1000Base-T and 1000Base-LX/SX ne…
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Offering the flexibility with all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performing highly stable Gigabit fiber capability, the PLANET Gigabit media converter series GT-80X (GT-802, GT-802S, GT-805A and GT-806A/B) supports conversion between 10/100/1000Base-T and 1000Base-LX/SX network. The GT-80X series offer three types of connector, SC / SFP / WDM connector, with single-mode or multi-mode media as required so that an Gigabit fiber network can be efficiently constructed through the Ethernet.
Designed in compact size, the GT-80X can be used as a standalone unit or being installed in the media converter chassis such as the PLANET MC-700/MC-1000R/MC-1500 ( 7/10/15-slot Media Converter Chassis to build a centralized fiber-optic network. The media chassis can feed GT-80X power to maintain the fiber-optic network at one location.
As the GT-80X series fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the installation of the Gigabit media conversion is quite quick and easy by simple plug and play. The GT-80x also supports flow control and back pressure in half-duplex to eliminate packets loss. Even when the web UI is not available, the network manager still can remotely control and monitor GT-80X by OAM (TS-1000 and IEEE 802.3ah) terminal function such as remote failure indication, loop back test, port status and performance monitoring and troubleshooting.
Datasheet ( Engels )
Specifications
| Certification | FCC Class A, CE Class A |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Product colour | Black |
| Auto MDI/MDI-X | Yes |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-SX |
| Duplex system | Full, Half |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10, 100, 1000 |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95 procent |
| Storage temperature (T-T) | -10 - 70 °C |
| Dimensions (WxDxH) | 97 x 69 x 26 mm |
| Maximum transfer distance | 550 m |
| Sensitivity | -13,5 dBmW |
| Tx power (max) | -4 dBmW |
| Tx power (min) | -9,5 dBmW |
| Wavelength | 850 nm |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Input current | 2 A |
| Input voltage | 5 V |
| Power consumption (typical) | 5,6 W |
| Warranty | 3 years |
| Merk | Planet |
|---|---|
| Part number (MPN) | GT-802 |
| EAN | 4711213686207 |
