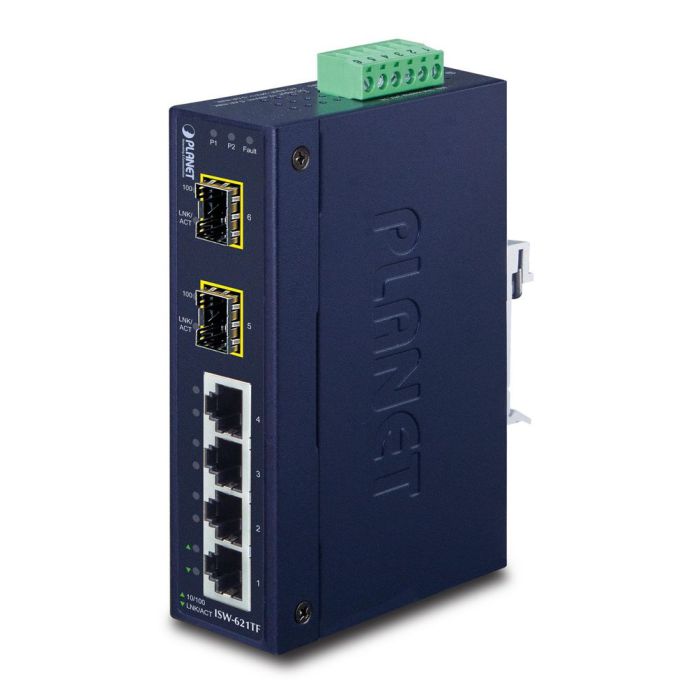

Planet Industrial Ethernet Switch, 4 x 10/100Base-TX RJ-45, 2 x 100Base-FX SFP, IP30
Op voorraad: 2 stuks
**Highly Convenient and Distance Extendable Industrial Robust Switch**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**Highly Convenient and Distance Extendable Industrial Robust Switch**
PLANET ISW-621TF is a new Industrial Ethernet Switch that can operate under WIDE-TEMPERATURE environment ranging from -40 up to 75 degrees C and is equipped with two 100Base-FX SFP slots. With two mini-GBIC 100Base-FX SFP (Small-Form Factor Pluggable) interfaces supported, the deployed distance of the ISW-621TF can be extended from 2 kilometers (via multi-mode fiber) up to above 60 kilometers (via single-mode fiber), respectively. In other words, the ISW-621TF provides more flexibility for Transportation, Manufacturing, Security and Surveillance with distance extension without any limitation and is a suitable model either for long or short distance network deployment.
**Hardened Design**
The ISW-621TF can operate stably in harsh environment with wide operating temperature support. It also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.
**Easy Installation and Wide Range of Power Usages**
The ISW-621TF is designed with a compact case that allows either DIN rail or panel mounting for the efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Datasheet ( Engels )
Specifications
| MAC address table | 2048 entries |
|---|---|
| Store-and-forward | Yes |
| Switching capacity | 1,2 Gbit/s |
| Throughput | 0,89 Mpps |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Blue |
| Rack mounting | No |
| Wall mountable | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Heat dissipation | 54 BTU/h |
| Operating relative humidity (H-H) | 5 - 90 procent |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 90 procent |
| Storage temperature (T-T) | -40 - 85 °C |
| Fiber ethernet cabling technology | 100BASE-FX |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 4 |
| Fiber optic connector | LC |
| Fiber ports quantity | 2 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Power consumption (max) | 16 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | No |
| Warranty | 5 years |
| Merk | Planet |
|---|---|
| Part number (MPN) | ISW-621TF |
| EAN | 4711213689468 |
