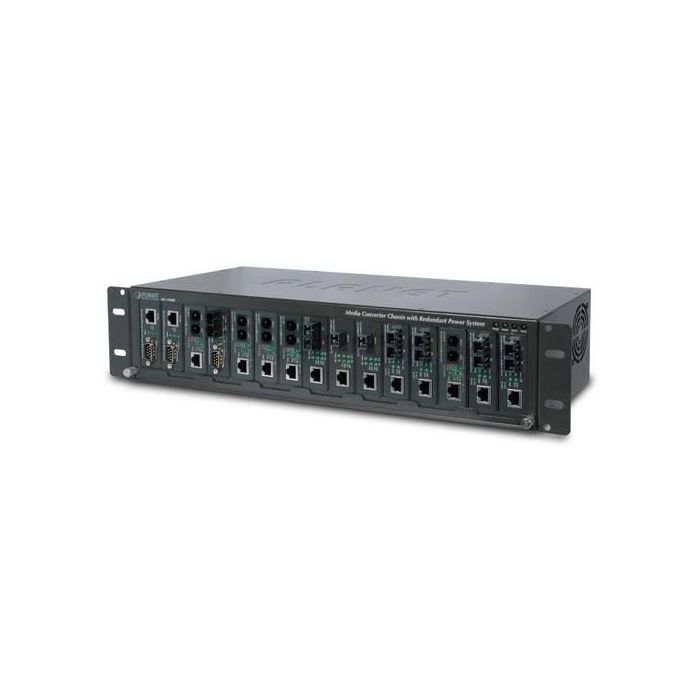

Planet 15-Slot Media Converter Chassis (AC Power)

High Density Chassis for multiple converter installation

The MC-1500R provides 15 slots for a wide range of PLANET media converter series. It allows the connectivity of up to 15 PLANET Ethernet, Fast Ethernet, Gigabit Ethernet or VDSL2 Converters in one chassis. The 15 slots in the 19" rack saves more spaces for fiber-optic wiring, simplifies the structure and eases the maintenance of media conversion.

Extremely Reliable Design to ensure continuous operation

The MC-1500R series supports the optional hot-swappable Redundant Power System (RPS) to ensure continuous operation. Both the MC-1500R and MC-1500R48 are equipped with one 100~240V AC power supply unit and one -48V DC power supply unit, which come in the package, respectively. To enhance the reliability, they each have one spare power supply slot for that optional purpose. The continuous power systems are specifically designed to meet the demands for high tech facilities requiring the highest power integrity available.

Plug and Play / Flexible Installation

The MC-1500R offers flexibility in installation and cost-effective scalable solution. With an independent power supply on each slot of the MC-1500R, any converter is hot-swappable without causing an interruption to other converters. The media converters and power modules can be plugged and played anytime. Each bay of the media converter chassis can be populated with any of PLANET’s media converter series, the FT, GT, VC-20x and ICS, to provide media conversion between fiber optic, phone wire and serial to copper lines.

Datasheet ( Engels )

Specifications
