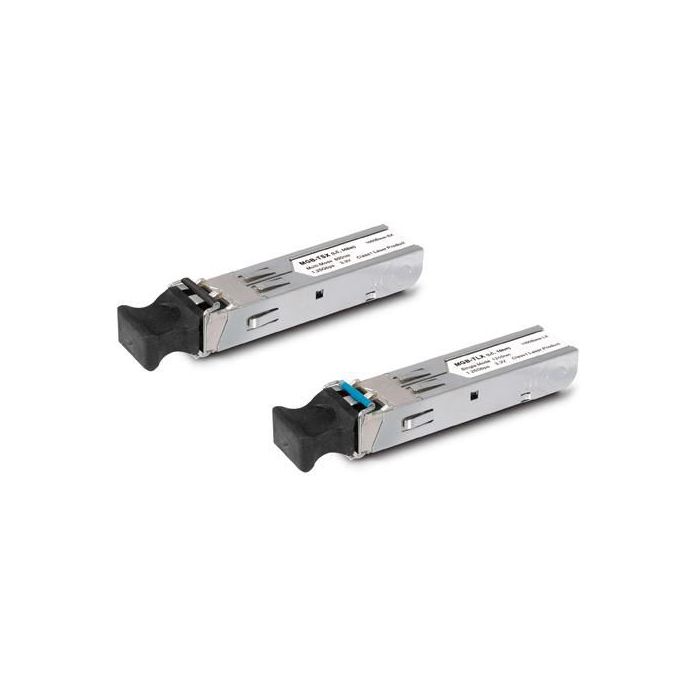

Planet SFP-Port 1000BASE-SX mini-GBIC module, 550m
Op voorraad: 562 stuks
The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.
The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 100 meters (TP), 550 meters (Multi-Mode, LC), and up to 120 kilometers (Single-Mode, LC).
To meet the increasing demand of the Industrial Ethernet fiber solution, Planet releases the MGB-T series 1000BASE-SX/LX/BX transceivers that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 75℃) environment. The MGB-T series 1000BASE-SX/LX/BX transceivers provide easy and fast 1000BASE-SX/LX/BX connection for Planet wide temperature industrial equipment.
leaflet ( Engels ) Product Brochure
Datasheet ( Engels )
Specifications
| Hot-Plug support | Yes |
|---|---|
| Plug and Play | Yes |
| Operating temperature (T-T) | -40 - 75 °C |
| Quantity per pack | 1 stuk(s) |
| Number of products included | 1 stuk(s) |
| Duplex system | Full, Half |
| Fiber optic connector | LC |
| Fiber ports quantity | 1 |
| Interface type | mini-GBIC |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum transfer distance | 550 m |
| Multi-mode fiber (MMF) supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| SFP transceiver standard | SX |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | No |
| Wavelength | 850 nm |
| Warranty | 5 years |
| Merk | Planet |
|---|---|
| Part number (MPN) | MGB-TSX |
| EAN | 4711213687730 |
