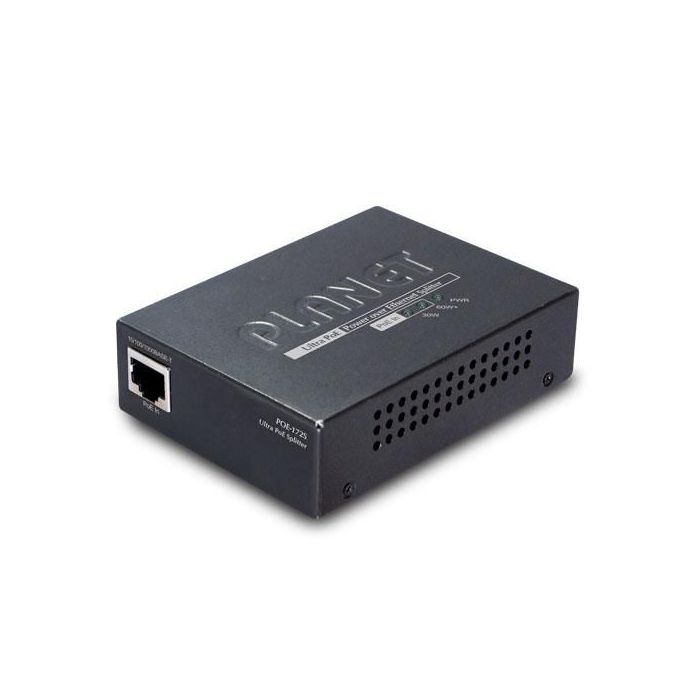

Planet Single-Port 10/100/1000Mbps Ultra PoE Splitter (12V/19V/24V)
Op voorraad: 17 stuks
**Quick and Easy Gigabit Ultra PoE Network Deployment**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**Quick and Easy Gigabit Ultra PoE Network Deployment**
PLANET POE-172S Gigabit ultra Power over Ethernet splitter, meeting the IEEE 802.3at/af standard with 802.3bt ready, delivers the Ethernet digital data and ultra PoE power over the twisted-pair cables to network devices. It separates the digital data and the power into three optional outputs (12V/19V/24V DC) and supports a transmission distance of up to 100 meters.
The POE-172S, when working with PLANET 802.3bt Ultra PoE switches or Injectors offers more PoE applications to client devices, such as:
PoE PTZ speed dome camera
Thin client
AIO (All-in-One) touch PC
Remote digital signage display
Network devices that need higher PoE power to work normally
The POE-172S frees the network device deployment from restrictions due to power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time.
**Innovative, Selectable DC Power Output Voltage**
Via the innovative 12V/19V/24V DIP switch on the front panel, the POE-172S can supply either 24V DC power to industrial equipment or 12V/19V DC output to the common network devices. It highly increases the flexibility of the product applications.
**Ultra PoE Power over 4-pair UTP Cable**
The POE-172S and 802.3bt Ultra PoE switches use cables that meet the IEEE 802.3bt/at/af standard. Instead of delivering power over 2-pair twisted UTP cable – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), they are able to transmit ultra PoE power and data by using all the four pairs of standard Cat5e/6 Ethernet cabling.
**Environment-friendly**
The POE-172S comes with a compact-sized metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the POE-172S is able to operate reliably and stably without affecting its performance. The deployment of non-PoE equipment with constant power feeding can be easily and quickly done.
manual pdf ( Engels ) User manual
leaflet ( Engels ) Product Brochure
Specifications
| Certification | CE, FCC |
|---|---|
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Wall mountable | Yes |
| Power over Ethernet (PoE) | Yes |
| Operating relative humidity (H-H) | 5 - 90 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90 procent |
| Storage temperature (T-T) | -10 - 70 °C |
| Cables included | UTP |
| Quantity | 1 |
| Quantity per pack | 1 stuk(s) |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| DC-out jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Adjustable output voltage | Yes |
| Input voltage | 50 - 56 V |
| Warranty | 3 years |
| Merk | Planet |
|---|---|
| Part number (MPN) | POE-172S |
| EAN | 4711605283168 |
