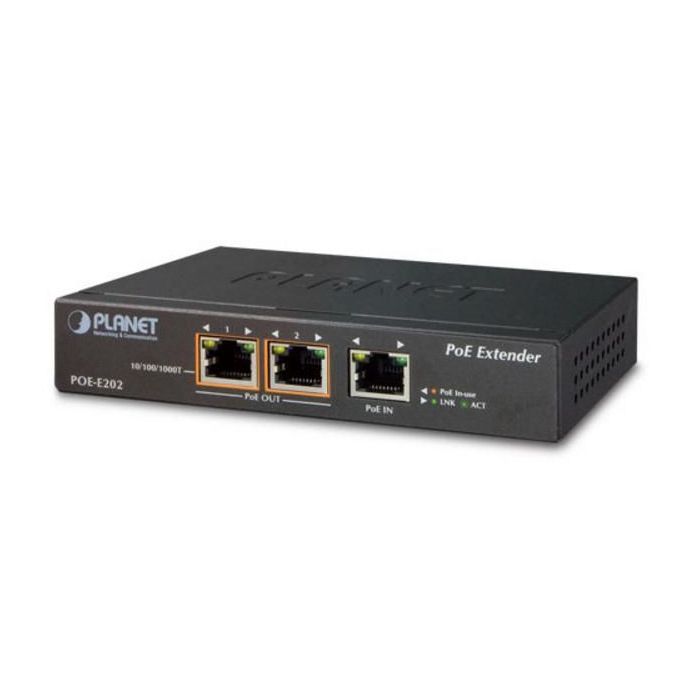

Planet 1-Port 802.3at PoE+ to 2-Port 802.3af/at Gigabit PoE Extender
Op voorraad: 2 stuks
PoE Solution for Breaking RJ45 100m Limitation
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
PoE Solution for Breaking RJ45 100m Limitation
PLANET POE-E202 is a 1-port PoE+ to 2-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The POE-E202 can obtain a maximum of 30-watt PoE power from PoE+ input port and supplies a maximum of 25-watt PoE power budget for two PoE output ports, extending both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to two 200m powered devices at the same time.
The POE-E202 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.
Plug and Play Installation
The POE-E202 is quite easy to be installed by simple plug and play. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E202 injects power to the PD without affecting the data transmission performance. The POE-E202 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The POE-E202 is designed in a compact box containing three RJ45 ports, of which one "PoE IN" port functions as PoE (Data and Power) input and the other two "PoE OUT" ports function as PoE output. The "PoE OUT" port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously between the PSE and PD.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Datasheet ( Engels )
Specifications
| Certification | FCC Part 15 Class A, CE |
|---|---|
| Housing material | Metal |
| LED indicators | Yes |
| Mounting type | Desk/Wall |
| Product colour | Black |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Wi-Fi | No |
| Operating relative humidity (H-H) | 5 - 95 procent |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating temperature (transmitter) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95 procent |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage temperature (transmitter) | 5 - 95 °C |
| Manual | Yes |
| Auto MDIX IEEE | Yes |
| Cable types supported | Cat5, Cat5e |
| Data transfer rate | 2 Mbit/s |
| Duplex system | Full, Half |
| Ethernet LAN data rates | 10, 100, 1000 |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| MAC address table | 2000 entries |
| Maximum transfer distance | 100 m |
| Plug and Play | Yes |
| Power over Ethernet (PoE) | Yes |
| Type | Network transmitter & receiver |
| VLAN tagging | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Power over Ethernet (PoE) ports quantity | 3 |
| RJ-45 ports quantity (receiver) | 1 |
| RJ-45 ports quantity (transmitter) | 2 |
| USB 2.0 ports quantity | 0 |
| Power consumption (max) | 30,8 W |
| Power over Ethernet (PoE) voltage range | 52 - 56 V |
| Warranty | 3 years |
| Merk | Planet |
|---|---|
| Part number (MPN) | POE-E202 |
| EAN | 4711605282055 |
