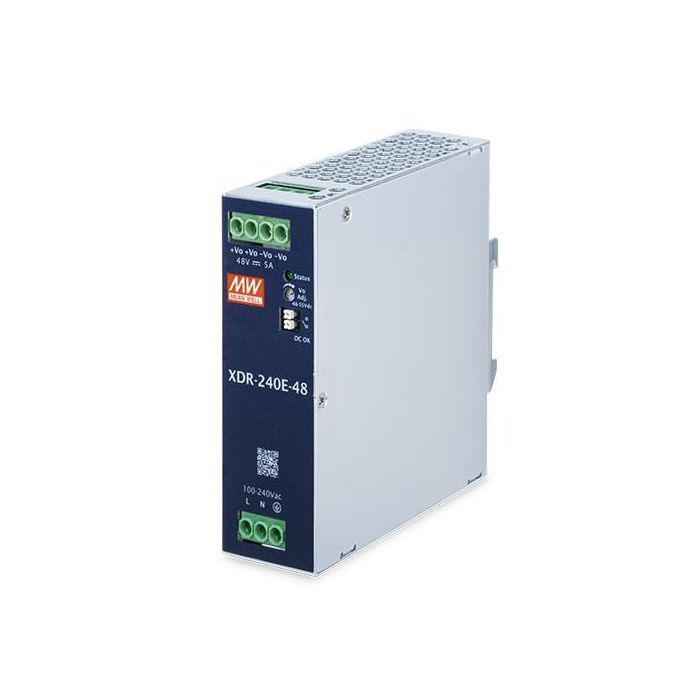

Planet DC Single Output Industrial DIN Rail Power Supply Units
Op voorraad: 54 stuks
Compact Size with more Practicability and Convenience
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
Compact Size with more Practicability and Convenience
PLANET has released a series of DC single output industrial DIN rail power supply units to make sure that industrial Ethernet devices, specially designed for the harsh working environment, get DC voltage power easily.
PLANET DC single output industrial DIN rail power supply units accept universal 100-240V AC input voltage and provide 48V DC power output with various watt values. Its power supply units are designed in compact size and can be installed on DIN rail TS-35 / 7.5 or 15. It is an ideal and convenient DC power feeding solution for Industrial equipment under heavy Industrial environments.
Stable Performance under Difficult Environments
PLANET DC single output industrial DIN rail power supply units come with such protection features as short circuit, overload, over voltage and over temperature for the stable operation of industrial Ethernet equipment. It uses the free air convection cooling system to prevent operating temperature from rising. Being able to operate under the temperature range from -20 to 70 degrees C (maximum), the DC single output industrial DIN rail power supply units can be placed in almost any difficult environments.
Specifications
| Cooling type | Passive |
|---|---|
| Operating relative humidity (H-H) | 20 - 95 procent |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95 procent |
| Storage temperature (T-T) | -40 - 85 °C |
| Power | 240 W |
| Safety | Ul508, TUV EN60950-1 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| DC input voltage | 120 - 370 V |
| Input current | 2.5 A |
| Output current | 5000 mA |
| Output voltage | 48 V |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage, Overheating, Overload, Short circuit |
| Total power | 240 W |
| On/off switch | No |
| Output power description | 240W |
| Product colour | Multicolour |
| Quantity | 1 |
| Type | DIN rail TS-35/7.5 or 15 |
| USB connectivity | No |
| Warranty | 3 years |
| Merk | Planet |
|---|---|
| Part number (MPN) | PWR-240-48 |
| EAN | 4711605283342 |
