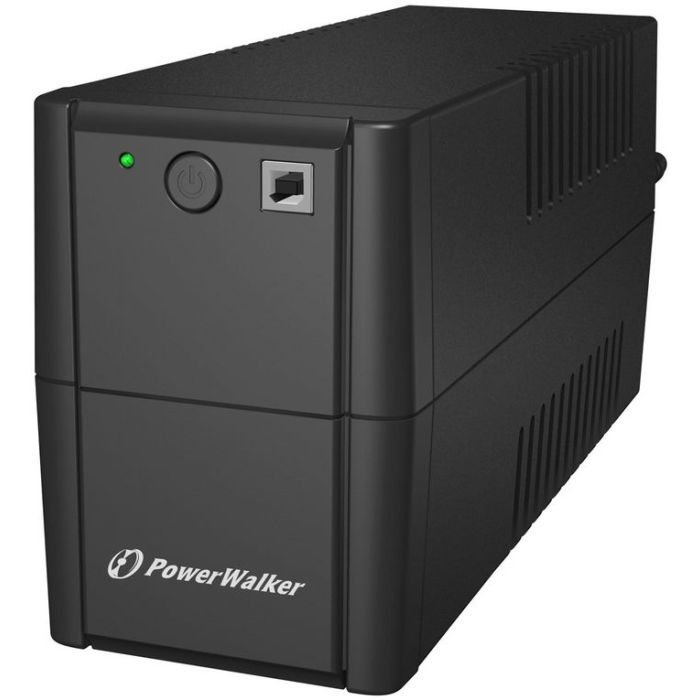

PowerWalker VI 850 SH IEC 850VA/480W, Line-Interactive
Op voorraad: 1 stuks
A Line- Interactive UPS offers backup function and automatic voltage regulation (AVR). AVR regulates voltage to the appropriate level by decreasing it during surges or swells or increasing it during a sag or burnout.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
A Line- Interactive UPS offers backup function and automatic voltage regulation (AVR). AVR regulates voltage to the appropriate level by decreasing it during surges or swells or increasing it during a sag or burnout. The advantage is a better protection for sensitive IT- and household equipment and avoids damage caused by voltage up- and downturn.
AVR function also benefits the battery lifetime. As long as voltage level is not lower than 70% to 90%, or higher than 110% to 125% AVR will adjust voltage to normal level. I case the voltage drops to a lower or higher level, the UPS will directly switch to battery mode to avoid dropouts and damage of the connected equipment.
Line- Interactive UPS offers USB port (RS-232) to connect to a multitude of operating systems for monitoring voltage, power and battery status.
Line- Interactive UPS are designed for medium cost application with moderate load levels
- 850VA Line-Interactive UPS
- 4x IEC Outlet, RJ-11 (in/out)
- USB Connection for monitoring
- Cold DC start and AVR function
- Green Power Function for energy saving
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
other digital assets ( Engels ) Quick Guide
Datasheet ( Engels )
Specifications
| Battery capacity | 9 Ah |
|---|---|
| Battery Technology | Valve-Regulated Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Cold start | Yes |
| Form factor | Mini Tower |
| LED indicators | Yes |
| Product colour | Black |
| Audible alarm(s) | Yes |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 170 V |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 480 W |
| Output power capacity | 0,85 kVA |
| Power protection features | Battery discharge, Over voltage, Overcharge, Overload |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Telephone |
| UPS topology | Line-Interactive |
| Operating relative humidity (H-H) | 0 - 90 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Bundled software | WinPower |
| AC outlet types | C13 coupler |
| AC outlets quantity | 4 AC-uitgang(en) |
| Modem (RJ-11) ports | 2 |
| USB 2.0 ports quantity | 1 |
| Warranty | 2 years |
| Merk | PowerWalker |
|---|---|
| Part number (MPN) | 10120074 |
| EAN | 4260074975864 |
