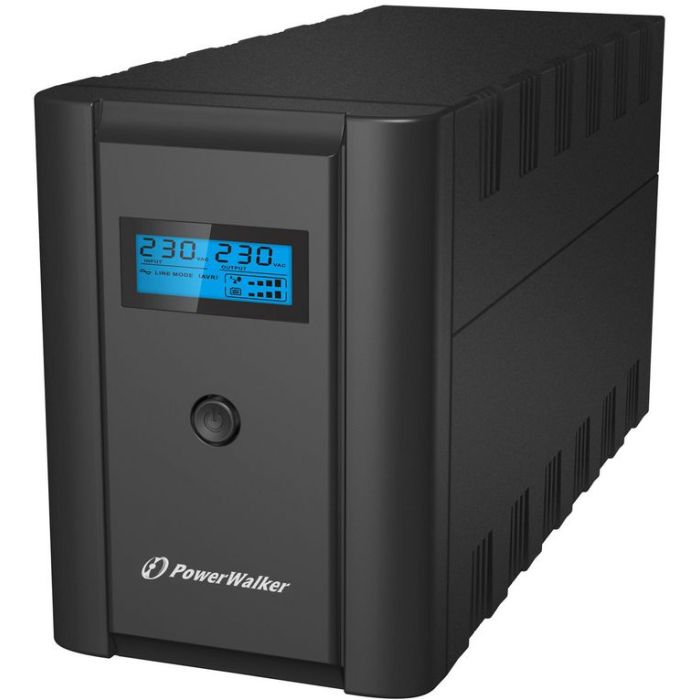

PowerWalker VI 2200 SHL 2200VA/1200W, Line-Interactive
Op voorraad: 30 stuks
PowerWalker VI SHL provides comprehensive protection and high power density in small and economic package. The UPS can be automatically started up without AC power supplied. In addition, this UPS provides RJ-11 surge protection.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
PowerWalker VI SHL provides comprehensive protection and high power density in small and economic package. The UPS can be automatically started up without AC power supplied. In addition, this UPS provides RJ-11 surge protection. Equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or small office application.
The VI SHL Series are equipped with stronger charger to reach 90% of battery capacity in 2-4h. With HID support for USB communication it allows quick and easy setup with any operating system.
manual pdf ( Engels ) User manual
Datasheet ( Engels )
Specifications
| Battery capacity | 9 Ah |
|---|---|
| Battery recharge time | 4 uur |
| Battery Technology | Valve-Regulated Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Charging current | 1,2 A |
| Number of batteries supported | 2 |
| Typical backup time at full load | 0,5 min |
| Typical backup time at half load | 5 min |
| Cooling type | Active |
| Display | LCD |
| Display type | LCD |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
| Automatic Voltage Regulation (AVR) | Yes |
| Efficiency | 95 procent |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 170 V |
| Output frequency regulation | 1 Hz |
| Output power | 1200 W |
| Output power capacity | 2,2 kVA |
| Output voltage regulation | 10 procent |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Network, Telephone |
| UPS topology | Line-Interactive |
| Products per pallet | 42 stuk(s) |
| Nominal output voltage | 230 V |
| Output connections | 2 x Schuko, 2 x IEC C13 |
| Bundled software | WinPower |
| AC outlet types | Type F |
| AC outlets quantity | 4 AC-uitgang(en) |
| Ethernet LAN (RJ-45) ports | 2 |
| Modem (RJ-11) ports | 2 |
| Number of type F outputs | 2 |
| Power plug | C14 coupler |
| Serial ports quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Warranty | 2 years |
| Merk | PowerWalker |
|---|---|
| Part number (MPN) | 10120098 |
| EAN | 4260074976502 |
