PowerWalker Offline, 600VA, 300W, Schuko Input, 6 x Schuko Outlet, 1 x 12V/5Ah
Leverbaar op bestelling
PowerWalker VFD APFC series is a standby/offline UPS for home and office applications and it is equipped with a technique that allows using the full power of UPS, even when used with APFC power supply load.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
PowerWalker VFD APFC series is a standby/offline UPS for home and office applications and it is equipped with a technique that allows using the full power of UPS, even when used with APFC power supply load. Usually it is required to oversize a UPS to ensure secure backup when connecting a power supply with active power factor correction. With the implemented technology this is no longer needed. Therefore you can choose smaller cost-effective UPS (e.g. PowerWalker VFD APFC instead of usual offline or line interactive 1000 VA model). Besides the lower purchase price, it also saves energy cost due to lower own power consumption.

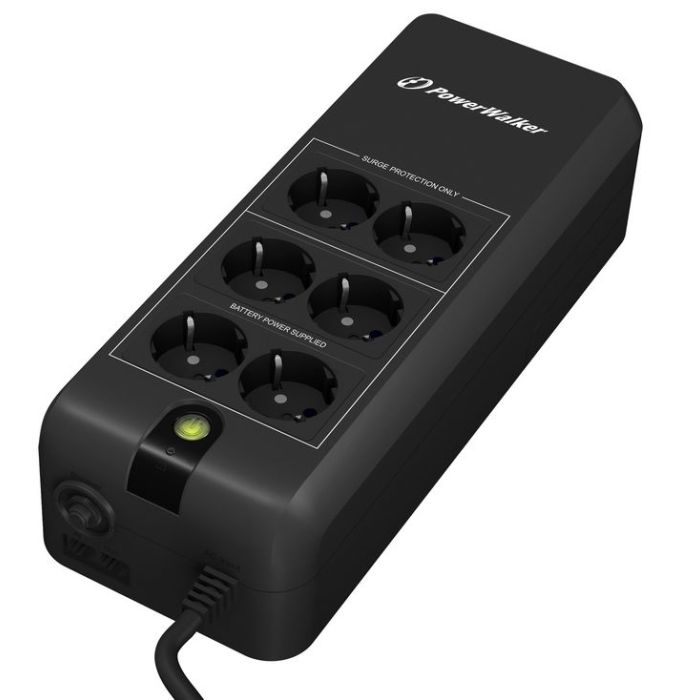

Equipped with 6 Schuko-Type outlets (all with surge protection, 4 with battery backup) these models can be used like a power strip. A special battery compartment enables an easy exchange of the rechargeable battery by the user.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Datasheet ( Engels )
Specifications
| Battery capacity | 5 Ah |
|---|---|
| Battery recharge time | 10 uur |
| Battery Technology | Valve-Regulated Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Number of batteries supported | 1 |
| Typical backup time at full load | 2 min |
| Typical backup time at half load | 8 min |
| Cooling type | Passive |
| Form factor | Compact |
| LED indicators | Yes |
| Product colour | Black |
| Efficiency | 95 procent |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 170 V |
| Output frequency regulation | 1 Hz |
| Output power | 300 W |
| Output power capacity | 0,6 kVA |
| Output power factor | 0,5 |
| Output voltage regulation | 10 procent |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Network, Telephone |
| UPS topology | Standby (Offline) |
| Products per pallet | 120 stuk(s) |
| Operating relative humidity (H-H) | 0 - 85 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Nominal output voltage | 230 V |
| Manual | Yes |
| AC outlet types | Type F |
| AC outlets quantity | 6 AC-uitgang(en) |
| Ethernet LAN (RJ-45) ports | 2 |
| Modem (RJ-11) ports | 2 |
| Number of type F outputs | 6 |
| Serial ports quantity | 0 |
| Warranty | 2 years |
| Merk | PowerWalker |
|---|---|
| Part number (MPN) | 10120410 |
| EAN | 4260074975499 |
