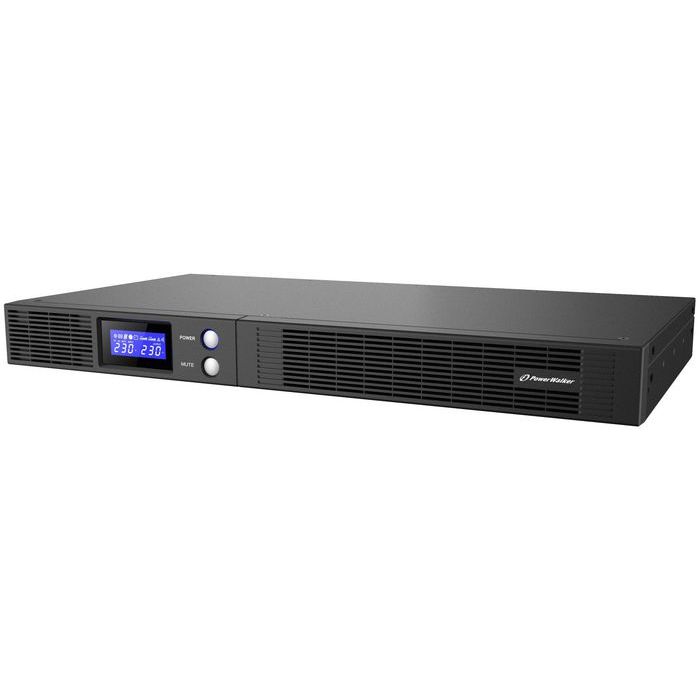

PowerWalker Line-Interactive, 750VA, 450W, 1 x C14 In, 4 x C13 Out, USB, RS-232, EPO, Intelligent Slot, UK
Op voorraad: 17 stuks
The PowerWalker VI R1U is a line interactive 1U rack UPS solution. Thanks to its 1U design, the UPS fits in nearly every setting. It is equipped with pure sine wave output and an optional card slot for network cards, so that even sensitive and critical loads can be kept safe.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The PowerWalker VI R1U is a line interactive 1U rack UPS solution. Thanks to its 1U design, the UPS fits in nearly every setting. It is equipped with pure sine wave output and an optional card slot for network cards, so that even sensitive and critical loads can be kept safe.
The PowerWalker VI R1U is a flexible all-rounder for home and semi-professional environments.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Datasheet ( Engels )
Specifications
| Battery capacity | 9 Ah |
|---|---|
| Battery recharge time | 8 uur |
| Battery Technology | Valve-Regulated Lead Acid (VRLA) |
| Battery voltage | 6 V |
| Charging current | 1 A |
| Number of batteries supported | 2 |
| Typical backup time at full load | 0,4 min |
| Typical backup time at half load | 8,7 min |
| Built-in fan | No |
| Display | LCD |
| Display type | LCD |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Efficiency | 95 procent |
| Emergency Power Off (EPO) | Yes |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 290 V |
| Input operation voltage (min) | 165 V |
| Output frequency regulation | 0.5 Hz |
| Output power | 450 W |
| Output power capacity | 0,75 kVA |
| Output power factor | 0,6 |
| Output voltage regulation | 10 procent |
| Output voltage Total Harmonic Distortion (THD) | 3 procent |
| Power factor | 0,6 |
| Response time | 4 ms |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Operating relative humidity (H-H) | 0 - 90 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Nominal output voltage | 230 V |
| Bundled software | PowerMaster |
| Cables included | Input power cable, USB cable |
| Manual | Yes |
| Rack mount kit | Yes |
| AC outlet types | C13 coupler |
| AC outlets quantity | 4 AC-uitgang(en) |
| Emergency Power Off (EPO) connector | Yes |
| Power plug | C14 coupler |
| RS-232 ports | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| USB port | Yes |
| USB port type | USB Type-B |
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
| Battery depth | 31,7 cm |
| Battery height | 15 cm |
| Battery weight | 9800 g |
| Battery width | 53,7 cm |
| Warranty | 2 years |
| Merk | PowerWalker |
|---|---|
| Part number (MPN) | 10120702 |
| EAN | 4260074981025 |
