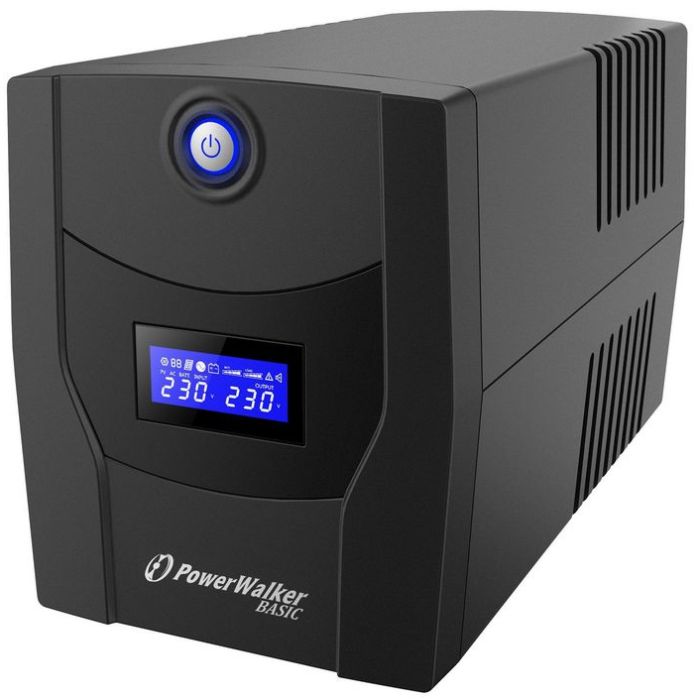

PowerWalker VI 2200 STL 2200VA/1320W, Line-Interactive, EU plugs
Op voorraad: 15 stuks
The PowerWalker basic VI 600/800/1000/1200/1500/2200 STL series is designed to answer the essential market needs. This line interactive UPS will protect your load from power failures and voltage disturbances, while remaining affordable and compact.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
The PowerWalker basic VI 600/800/1000/1200/1500/2200 STL series is designed to answer the essential market needs. This line interactive UPS will protect your load from power failures and voltage disturbances, while remaining affordable and compact. It is equipped with a USB port with HID support allowing easy and immediate communication with any O/S.
Additionally this series offers an advanced auto-dimming LCD panel with a smart multifunctional button (a single click will illuminate the LCD panel, a double click will mute the alarm and a long-press will control the output).
The managing software PowerWalker PowerMaster is available for download from our website. Item has EU plugs.
leaflet ( Engels ) Product Brochure
manual pdf ( Frans )
Datasheet ( Engels )
Specifications
| Battery capacity | 9 Ah |
|---|---|
| Battery recharge time | 8 uur |
| Battery Technology | Valve-Regulated Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Number of batteries supported | 2 |
| Typical backup time at full load | 0,25 min |
| Typical backup time at half load | 3,9 min |
| Cooling type | Active |
| Display | LCD |
| Display type | LCD |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
| Automatic Voltage Regulation (AVR) | Yes |
| Efficiency | 95,7 procent |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 290 V |
| Input operation voltage (min) | 162 V |
| Output frequency | 50/60 Hz |
| Output power | 1320 W |
| Output power capacity | 2,2 kVA |
| Response time | 4 ms |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Nominal output voltage | 230 V |
| AC outlet types | Type F |
| AC outlets quantity | 4 AC-uitgang(en) |
| Number of type F outputs | 4 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Warranty | 2 years |
| Merk | PowerWalker |
|---|---|
| Part number (MPN) | 10121077 |
| EAN | 4260074980721 |
