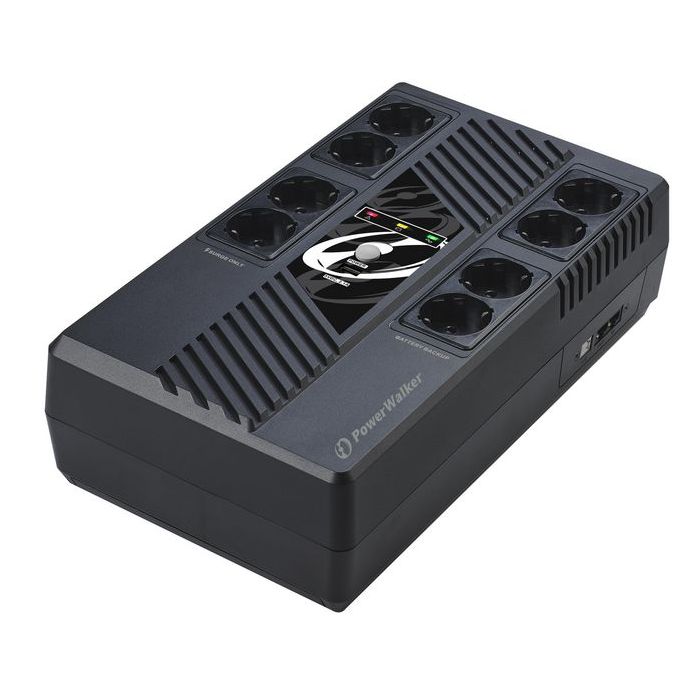

PowerWalker VI 600 MS, Line-Interactive, 600VA / 360W, 8 CEE 7/3 (Type F) Outlets, USB, RS-232, RJ-45/RJ-11 protection
Op voorraad: 3 stuks
PowerWalker VI MS is a line-interactive UPS series with multiple sockets. 4 sockets with battery backup for critical loads and 4 sockets with bypass for non critical loads. The integrated AVR function ensures clean and stable output during power outages or voltage fluctuations.
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
PowerWalker VI MS is a line-interactive UPS series with multiple sockets. 4 sockets with battery backup for critical loads and 4 sockets with bypass for non critical loads. The integrated AVR function ensures clean and stable output during power outages or voltage fluctuations. The UPS functions can be monitored and controlled via USB communication, either with a software or without (HID).
The multi socket design makes the VI MS series especially suitable for home and office applications. The UPS can be used on top of a desk or it can be mounted to a wall. Applications include home office, workstations, NAS etc.
Furthermore, the USB charging port (2.1A) offers additional functionality, and the design allows access to the battery compartment via the back panel for easy battery replacement.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Specifications
| Battery capacity | 7 Ah |
|---|---|
| Battery recharge time | 8 uur |
| Battery Technology | Valve-Regulated Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Charging current | 2,1 A |
| Number of batteries supported | 1 |
| Typical backup time at full load | 0,1 min |
| Typical backup time at half load | 5,3 min |
| Built-in fan | No |
| Cooling type | Passive |
| Form factor | Compact |
| LED indicators | Yes |
| Product colour | Black |
| Automatic Voltage Regulation (AVR) | Yes |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 280 V |
| Input operation voltage (min) | 170 V |
| Noise level | 40 dB |
| Output operation voltage (max) | 230 V |
| Output operation voltage (min) | 230 V |
| Output power | 360 W |
| Output power capacity | 0,6 kVA |
| Output power factor | 0,6 |
| Output voltage regulation | 10 procent |
| Power factor | 0,6 |
| Power protection features | Overcharge, Overdischarge, Overload |
| Response time | 6 ms |
| Surge energy rating | 156 J |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Network, Telephone |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Operating relative humidity (H-H) | 0 - 90 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| AC outlet types | Type F |
| AC outlets quantity | 8 AC-uitgang(en) |
| Ethernet LAN (RJ-45) ports | 2 |
| Number of type F outputs | 8 |
| RS-232 ports | 1 |
| Serial interface | No |
| Serial ports quantity | 1 |
| USB port | Yes |
| Warranty | 2 years |
| Merk | PowerWalker |
|---|---|
| Part number (MPN) | 10121160 |
| EAN | 4260074982640 |
