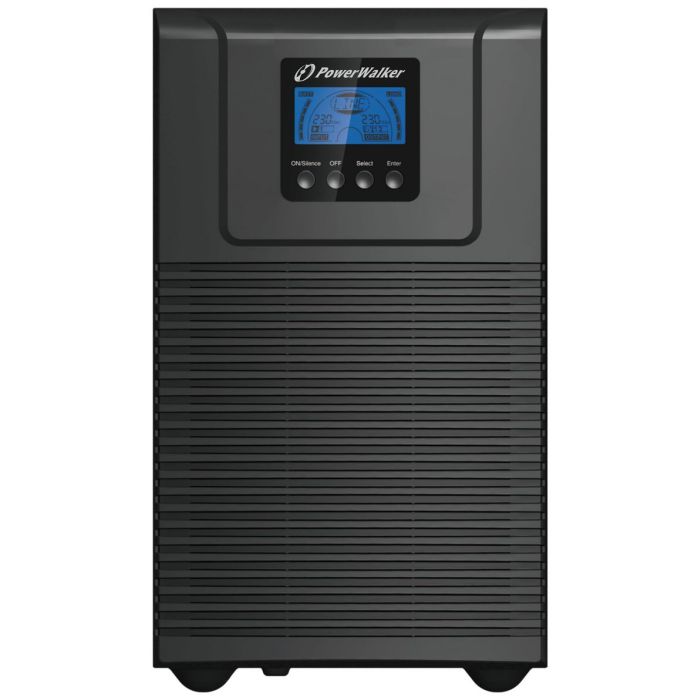

PowerWalker 3000VA / 2700W, Online, 4x C13, C19, USB HID, RS-232, Intelligent Slot, EPO, 6x 12V/9Ah, 22.2 kg
Leverbaar op bestelling
- 3000VA / 2700W Online UPS with Power Factor 0.9
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
- 3000VA / 2700W Online UPS with Power Factor 0.9
- C20 Input, 4x IEC C13 Outlet, 1x IEC C19 Outlet
- Batteries included: 6x 12V/9Ah
- Online technology with Power Factor 0.9
- Human Interface Device (USB HID) support
- Wide Input Range 100-300VAC for all environments
- Available with integrated batteries
The PowerWalker VFI 1000-3000 TG and its long-run version VFI 1000-3000 TGS offer a professional solution for home and office environment. UPSs are available with internal batteries or alternatively with stronger charger (6A instead of 1A) for an external battery solution.
VFI TG(S) series are detected as HID Power Device by the internal O/S drivers and can be managed without additional software. It finds its application in all dedicated systems for kiosks, ATMs as well as in high security level systems, where additional software is not allowed (i.e. banking).
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Specifications
| Battery capacity | 9 Ah |
|---|---|
| Battery recharge time | 4 uur |
| Battery Technology | Valve-Regulated Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Charging current | 1,5 A |
| Number of batteries supported | 6 |
| Typical backup time at full load | 4,5 min |
| Cooling type | Active |
| Display | LCD |
| Display type | LCD |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
| Crest factor | 3:1 |
| Efficiency | 90 procent |
| Emergency Power Off (EPO) | Yes |
| Input frequency | 40 - 70 Hz |
| Input operation voltage (max) | 300 V |
| Input operation voltage (min) | 80 V |
| Input power factor | 0,99 |
| Noise level | 50 dB |
| Output frequency regulation | -0.05 - 0.05 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 2700 W |
| Output power capacity | 3 kVA |
| Output power factor | 0,9 |
| Output voltage regulation | -2 - 2 procent |
| Response time | 4 ms |
| UPS topology | Double-conversion (Online) |
| Operating relative humidity (H-H) | 0 - 95 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Cables included | Input power cable, USB cable |
| Manual | Yes |
| Resource CD | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 5 AC-uitgang(en) |
| Emergency Power Off (EPO) connector | Yes |
| Power plug | C20 coupler |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| Warranty | 2 years |
| Merk | PowerWalker |
|---|---|
| Part number (MPN) | 10122043 |
| EAN | 4260074978322 |
