PowerWalker 3kVA, 2.7kW, 176-300V, 40-70Hz, 190x399x328mm, 22.2kg, Black
Op voorraad: 2 stuks

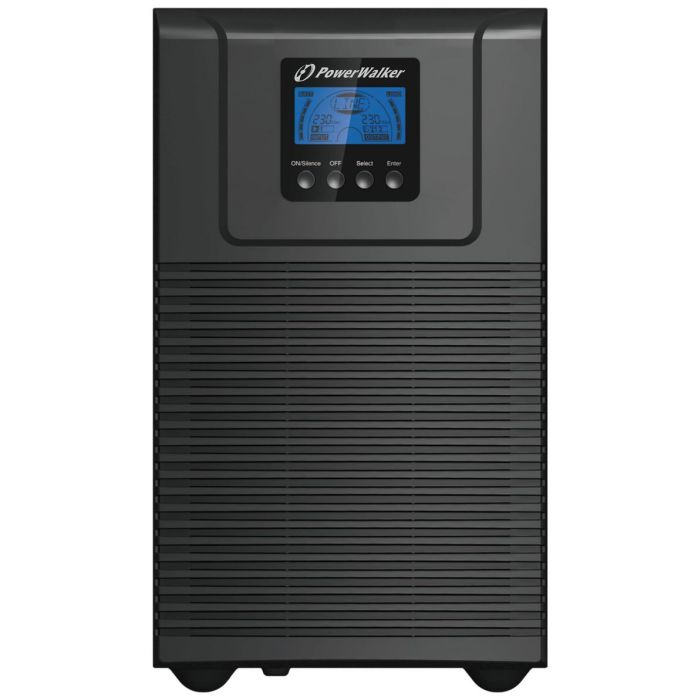

**PowerWalker VFI 3000 TGB**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending in Nederland vanaf € 150
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**PowerWalker VFI 3000 TGB**
The PowerWalker VFI 1000-10000 TG/TGB/TGS offer a professional solution for home and office environment. They are available with different designs:
- TG: With internal battery; ranges from 1000-3000VA
- TGB: With internal battery and battery connector for external battery packs; ranges from 1000-10000VA
- TGS: Without internal batteries, but with a strong charger and battery connector; ranges from 1000-10000VA
The VFI TG/TGB/TGS series are detected as Human Interface Device (HID) Power Device by the internal O/S drivers and can be managed without additional software. It finds its application in all dedicated systems for kiosks, ATMs as well as in high security level systems, where additional software is not allowed (i.e. banking).
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
Specifications
| Battery capacity | 9 Ah |
|---|---|
| Battery recharge time | 4 uur |
| Battery Technology | Valve-Regulated Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Number of batteries supported | 6 |
| Typical backup time at full load | 3,9 min |
| Typical backup time at half load | 11,7 min |
| Display | LCD |
| Display type | LCD |
| Product colour | Black |
| Crest factor | 3:1 |
| Efficiency | 90 procent |
| Emergency Power Off (EPO) | Yes |
| Input current Total Harmonic Distortion (THD) | 5 procent |
| Input frequency | 40 - 70 Hz |
| Input operation voltage (max) | 300 V |
| Input operation voltage (min) | 176 V |
| Noise level | 50 dB |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 2700 W |
| Output power capacity | 3 kVA |
| Output voltage Total Harmonic Distortion (THD) | 5 procent |
| Power factor | 0,9 |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Products per pallet | 14 stuk(s) |
| Operating relative humidity (H-H) | 0 - 95 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Cables included | Input power cable, USB cable |
| Manual | Yes |
| Software CD | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 5 AC-uitgang(en) |
| Emergency Power Off (EPO) connector | Yes |
| Power plug | C20 coupler |
| RS-232 ports | 1 |
| USB port | Yes |
| Merk | PowerWalker |
|---|---|
| Part number (MPN) | 10122100 |
| EAN | 4260074979770 |
