PowerWalker 1 kVA, 900 kW, 80-300V, 40-70Hz, LCD
Op voorraad: 4 stuks

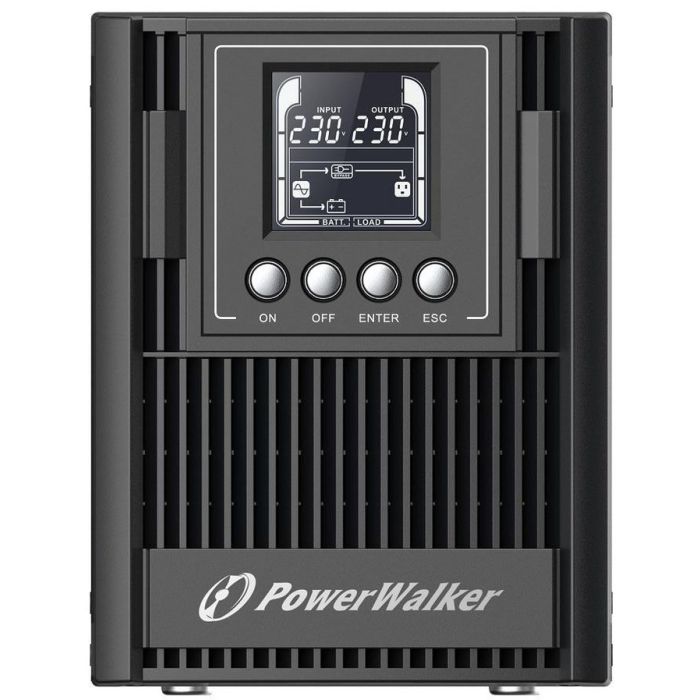

**PowerWalker VFI 1000 AT FR**
- Voor 16:00 besteld, snel verzonden
- Gratis verzending vanaf € 80
- 14 dagen bedenktijd en retour
- Persoonlijk advies van onze specialisten
**PowerWalker VFI 1000 AT FR**
PowerWalker VFI 1000-3000 AT is an Online UPS series with double conversion technology, designed to safeguard your mission-critical equipment. Despite its professional application, the VFI AT series is easy to operate and comes inside a compact and economic package. Rather uniquely among Online UPS, the VFI AT series features outlet sockets for Type F, Type E and Type G plugs. This broadens its usability and allows for different types of application. Multiple optional accessories such as external battery packs and communication cards, enhance the functionality of the UPS and allow for a greater backup time.
leaflet ( Engels ) Product Brochure
manual pdf ( Engels ) User manual
manual pdf ( Engels ) User manual
Specifications
| Battery capacity | 9 Ah |
|---|---|
| Battery recharge time | 4 uur |
| Battery Technology | Valve-Regulated Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Number of batteries supported | 2 |
| Typical backup time at full load | 3,5 min |
| Typical backup time at half load | 11 min |
| Built-in fan | Yes |
| Display | LCD |
| Display type | LCD |
| Form factor | Tower |
| Product colour | Black |
| Crest factor | 3:1 |
| Efficiency | 88 procent |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 300 V |
| Input operation voltage (min) | 80 V |
| Input power factor | 0,99 |
| Output frequency regulation | ±0.5 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 208 V |
| Output power | 900 W |
| Output power capacity | 1 kVA |
| Output power factor | 0,9 |
| Output voltage regulation | ±1 procent |
| Output voltage Total Harmonic Distortion (THD) | 5 procent |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| Operating relative humidity (H-H) | 20 - 90 procent |
| Operating temperature (T-T) | 0 - 40 °C |
| Cables included | RS-232, USB cable |
| AC outlet types | Type E |
| AC outlets quantity | 3 AC-uitgang(en) |
| Power plug | C14 coupler |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| USB port type | USB Type-B |
| Warranty | 2 years |
| Merk | PowerWalker |
|---|---|
| Part number (MPN) | 10122183 |
| EAN | 4260074982480 |
